Specifications
| Country of Origin | Mexico |
|---|---|
| Manufacturer Part Number | HD5P3E |
| Manufacturer | US Motors |
| Family Series | US Motors Motors |
| Type | General Purpose, Hostile Duty |
| Horsepower | 5 hp |
| Kilowatts | 3.7 kW |
| Speed | 1,175 RPM |
| RPM | 1,175 RPM |
| Number of Poles | 6 |
| Phase | 3 |
| Frequency | 60 Hz |
| NEMA Frame | 215T |
| AC Voltage | 230 VAC, 460 VAC |
| Nominal Voltage | 240 VAC, 480 VAC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | Foot Mount |
| Current Rating | 14.2 A |
| Composition | Cast Iron |
| Net Weight | 180 lbs |
| Gross Weight | 180 lbs |
Description
Motors, Series
Item #
HD5P3E

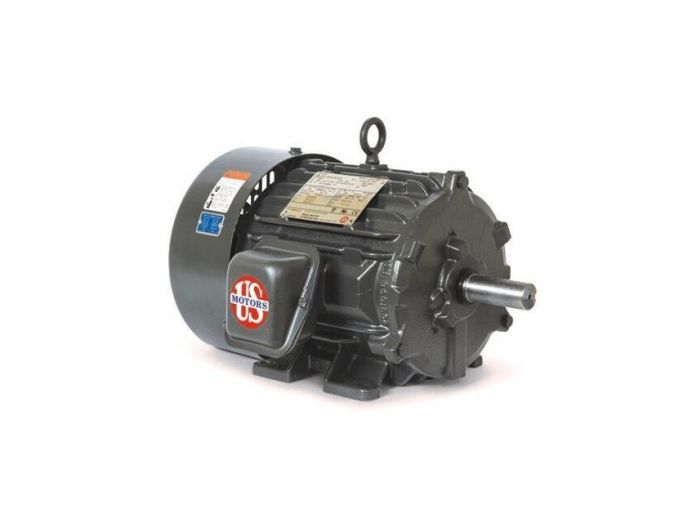

Motor, 5 HP, 1200 RPM, 215T
Series Information
