HLD3600F
Eaton Circuit Breakers, L Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

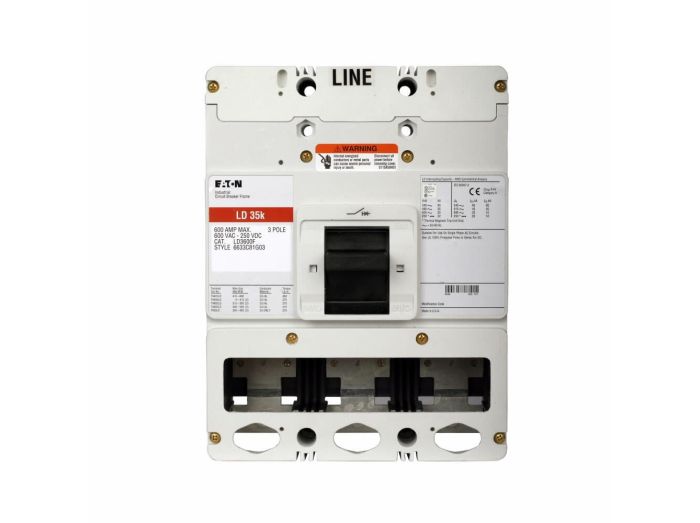

HLD3600F Eaton Circuit Breakers, L Series
Circuit Breaker Frame, 3-P, 600Amax,
MFG Item Number
6633C81G06
Item Number
HLD3600F
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Circuit Breakers, L Series
Item #
HLD3600F
Circuit Breaker Frame, 3-P, 600Amax,
L Series Information
- HCAR Rated
- Available as Individual Components, or Factory Assembled Complete Breakers
- Non‑Interchangeable Trip Units are Suitable for Reverse Feed Use
- 2, 3, or 4 Poles
Specifications
| Manufacturer Part Number | 6633C81G06 |
|---|---|
| Manufacturer | Eaton |
| Product Series | L |
| Family Series | Eaton Circuit Breakers, L Series |
| Description | Circuit Breaker Frame, 3-P, 600Amax, 65KAIC@480VAC, Molded Case, Frame Only-Less Term Lugs, Trip Unit, Plug |
| Poles | 3 |
| Current Rating | 600 A |
| Neutral Pole | No |
| GFCI | No |
| Neutral Protection | No |
| 100% Rated | No |
| Auxiliary Switch | Optional |
| Shunt Trip | Optional |
| Undervoltage Release | Optional |
| Alarm Switch | Optional |
| UL Standard | 489 |
| Approvals | CE, UL |
| Gross Weight | 17.5 lbs |
| Net Weight | 17.5 lbs |
