Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series
HT8AAGA Eaton Switches, HT800 Series
MFG #:
HT8AAGA

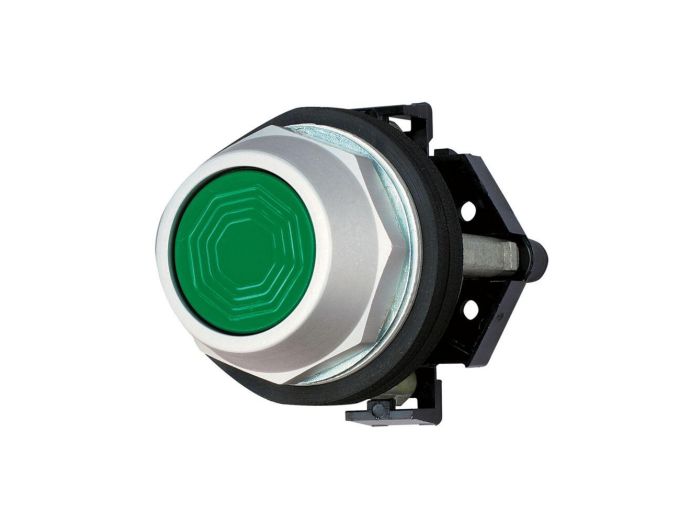

Eaton, 30.5 mm Watertight/Oiltight Pushbutton operator,Green,Plastic Actuator,Chrome bezel,1NO,Non-illuminated,Flush mounting,NEMA 3, 3R, 4, 4X, 12, 13,Momentary,30.5 mm,Flush Pushbutton,HT800
Specifications
| Country of Origin | Dominican Republic |
|---|---|
| Manufacturer Part Number | HT8AAGA |
| Manufacturer | Eaton |
| Product Series | HT800 |
| Family Series | Eaton Switches, HT800 Series |
| Illuminated | No |
| Operation | Momentary |
| Mounting | 30 mm |
| Contacts | 1NO |
| Max Voltage | 600 VAC, 600 VDC |
| Current Rating | 10 A |
| Bezel | Metal Round |
| Lens/Button Shape | Round Flush |
| Operator Color | Green |
| Terminal Type | Screw |
| NEMA Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Approvals | CSA, UL |
| Comments | Screw |
| H x W x D | 2.40 " x 2.10 " x 3.20 " |
| Net Weight | 0.4 lbs |
| Gross Weight | 0.4 lbs |
Description
Switches, HT800 Series
Item #
HT8AAGA
FLUSH PB GN W/ 1NO Cont BLOCK
HT800 Series Information
- 30.5mm Mounting Size
- Flush, Extended, or Mushroom
- Standard Screw Terminals
- NEMA 1,2,3,3R,4,4X,12,13
- UL; CSA Approvals
- Easy to Assemble
- Watertight/Oiltight Design
