Specifications
| Country of Origin | Japan |
|---|---|
| Manufacturer Part Number | HW1F-2F20QD-W-120V |
| Manufacturer | IDEC |
| Product Series | HW |
| Family Series | IDEC Switches, HW Series |
| Illuminated | Yes |
| Number of Positions | 2 |
| Mounting | 22 mm |
| Selector Function | Maintained |
| Operator Type | Knob |
| Contacts | 2NO |
| Max Voltage | 600 VAC, 600 VDC |
| Current Rating | 10 A |
| Lamp Type | LED |
| Lamp Voltage | 120 VAC |
| Lens Color | White |
| Bezel | Plastic Round |
| Terminal Type | Fingersafe Screw |
| NEMA Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 3S, NEMA 4, NEMA 4X, NEMA 5, NEMA 12, NEMA 13 |
| Approvals | CE, CSA, UL |
| Protection Rating | IP65 |
| H x W x D | 1.63 " x 1.16 " x 3.01 " |
| Net Weight | 0.2183 lbs |
| Gross Weight | 0.2183 lbs |
Description
Switches, HW Series
Item #
HW1F-2F20QD-W-120V
SEL/SWITCH 22MM 2POS LED MAINT
HW Series Information
- Choice of Black Plastic or Metallic Front Bezels
- Locking Lever Removable Contact Blocks
- Tamperproof Construction
- Worldwide Approvals
- Easy to Assemble
Documents & Resources Links
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Mounting | Series | Illuminated | Price | Action |
|---|---|---|---|---|---|---|---|
|
HW4F-2F20QD-W-120V | HW Mtl Bzl Ill SS 2pos Maint LED 2NO | 22 mm | IDEC Switches | Yes |
Price unavailable
|
Added to Cart

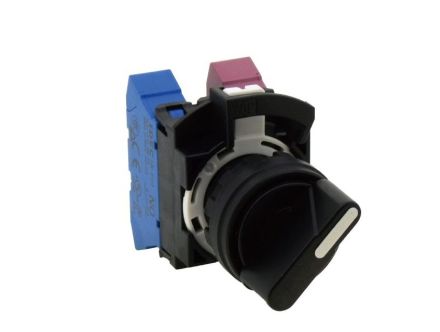

HW1F-2F20QD-W-120V IDEC Switches, HW Series, SEL/SWITCH 22MM 2POS LED MAINT
Series HW
MFG #:
HW1F-2F20QD-W-120V
SEL/SWITCH 22MM 2POS LED MAINT F/VOLT 2NO WHITE
