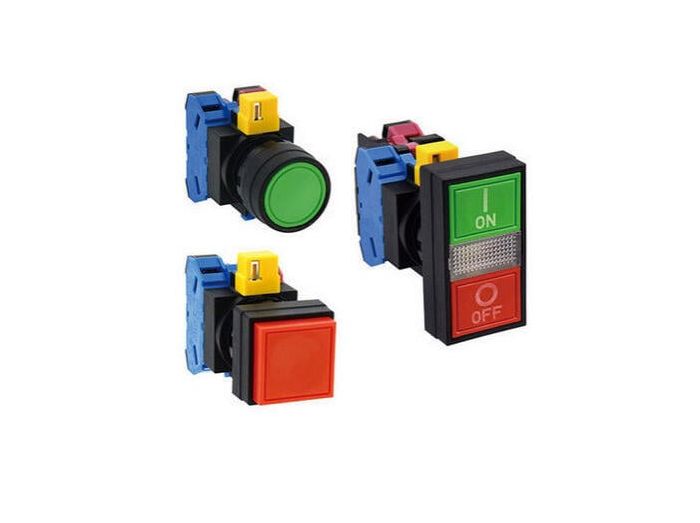

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series
HW1L-M2F10QD-W-6V IDEC Switches, HW Series
MFG #:
HW1L-M2F10QD-W-6V
PUSHBUTTON, MOM, WHT, EXT, 6V DIRECT FULL VOLTAGE, 22mm MOUNTING, LED 1NO CONTACT BLOCK, BLACK BEZEL
Specifications
| Country of Origin | Japan |
|---|---|
| Manufacturer Part Number | HW1L-M2F10QD-W-6V |
| Manufacturer | IDEC |
| Product Series | HW |
| Family Series | IDEC Switches, HW Series |
| Illuminated | Yes |
| Operation | Momentary |
| Mounting | 22 mm |
| Contacts | 1NO |
| Max Voltage | 600 VAC, 600 VDC |
| Current Rating | 10 A |
| Bezel | Plastic Round |
| Lamp Type | LED |
| Nominal Lamp Voltage | 6 VDC, 12 VAC |
| Lens/Button Shape | Round Extended |
| Operator Color | White |
| Terminal Type | Fingersafe Screw |
| Protection Rating | IP65 |
| Approvals | CE, CSA, UL |
| H x W x D | 1.16 " x 1.63 " x 3.52 " |
| Net Weight | 0.17 lbs |
| Gross Weight | 0.17 lbs |
Description
Switches, HW Series
Item #
HW1L-M2F10QD-W-6V
PUSHBUTTON, MOM, WHT, EXT, 6V DIRECT
HW Series Information
- Choice of Plastic or Metallic Bezels
- IP20 or Spring Screw Terminals
- Incandescent or LED Types
- Tamperproof Construction
- 22mm Mounting Size
- Easy to Assemble
