Specifications
| Country of Origin | Japan |
|---|---|
| Manufacturer Part Number | HW1L-M4F02QD-W-24V |
| Manufacturer | IDEC |
| Product Series | HW |
| Family Series | IDEC Switches, HW Series |
| Illuminated | Yes |
| Operation | Momentary |
| Mounting | 22 mm |
| Operator Size (mm) | 40 mm |
| Contacts | 2NC |
| Max Voltage | 600 VAC, 600 VDC |
| Current Rating | 10 A |
| Bezel | Plastic Round |
| Lamp Type | LED |
| Nominal Lamp Voltage | 24 VAC, 24 VDC |
| Lens/Button Shape | Mushroom |
| Operator Color | White |
| Terminal Type | Fingersafe Screw |
| Protection Rating | IP65 |
| Approvals | CE, CSA, UL |
| H x W x D | 1.16 " x 1.63 " x 3.52 " |
| Net Weight | 0.2188 lbs |
| Gross Weight | 0.2188 lbs |
Description

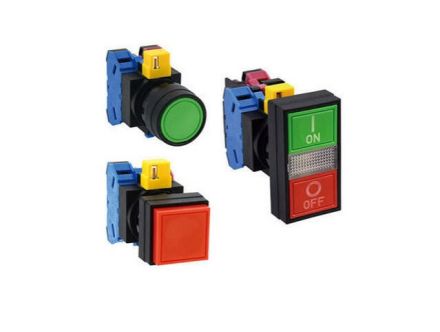

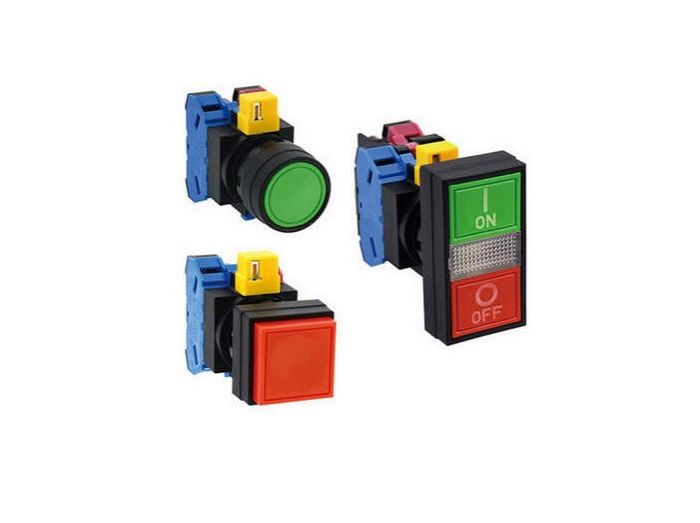

Switches, HW Series
Item #
HW1L-M4F02QD-W-24V
P/B 22MM LED MOM 40MM MUSHRM F/VOLT
HW Series Information
- Choice of Plastic or Metallic Bezels
- IP20 or Spring Screw Terminals
- Incandescent or LED Types
- Tamperproof Construction
- 22mm Mounting Size
- Easy to Assemble
