Specifications
| Country of Origin | Japan |
|---|---|
| Manufacturer Part Number | HW1P-1FM4D-G |
| Manufacturer | IDEC |
| Product Series | HW |
| Family Series | IDEC Pilot Lights, HW Series |
| Push-to-Test | No |
| Mounting | 22 mm |
| Lamp Type | LED |
| Lens/Button Shape | Flat Round |
| Lens Color | Green |
| Bezel | Black Plastic |
| Nominal Lamp Voltage | 240 VAC |
| Protection Rating | IP65 |
| Terminal Type | Screw |
| NEMA Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 3S, NEMA 4, NEMA 4X, NEMA 5, NEMA 12, NEMA 13 |
| Approvals | CE, CSA, UL |
| H x W x D | 1.14 " x 1.14 " x 3.11 " |
| Gross Weight | 0.04 lbs |
| Net Weight | 0.04 lbs |
Description

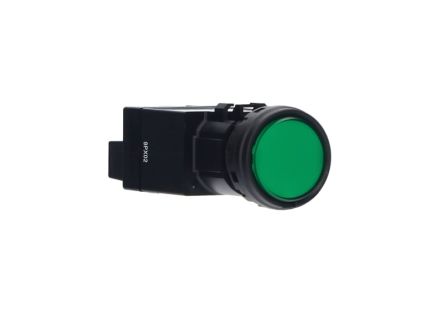

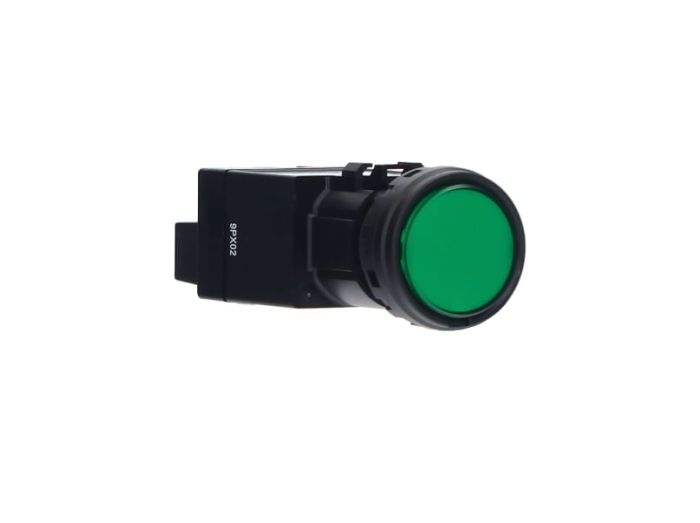

Pilot Lights, HW Series
Item #
HW1P-1FM4D-G
PILOT LIGHT, GRN, 240V XFMR, LED
HW Series Information
- 22mm Mounting Size
- Incandescent or LED Types
- IP20 or Spring Screw Terminals
- NEMA 1,2,3,3R,3S,4,4X,5,12,13
- UL; CSA; CE Approvals
- Easy to Assemble
- Choice of Plastic or Metallic Bezels
- Tamperproof Construction
Documents & Resources Links
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Mounting | Series | Price | Action |
|---|---|---|---|---|---|---|
|
HW1P-1FQD-G-240V | Pilot Light, Grn, 240V Direct, LED, Full Voltage, 22mm Mounting, LED, Round Flush Lens, Black Bezel | 22 mm | HW |
Price unavailable
|
Added to Cart
HW1P-1FM4D-G IDEC Pilot Lights, HW Series, PILOT LIGHT, GRN, 240V XFMR, LED
Series HW
MFG #:
HW1P-1FM4D-G
PILOT LIGHT, GRN, 240V XFMR, LED ROUND FLUSH LENS 22mm MOUNTING
Alternatives
HW1P-1FQD-G-240V Idec Pilot Lights, HW Series
Series HW
Series HW
MFG #:
HW1P-1FQD-G-240V
Pilot Light, Grn, 240V Direct, LED, Full Voltage, 22mm Mounting, LED, Round Flush Lens, Black Bezel
