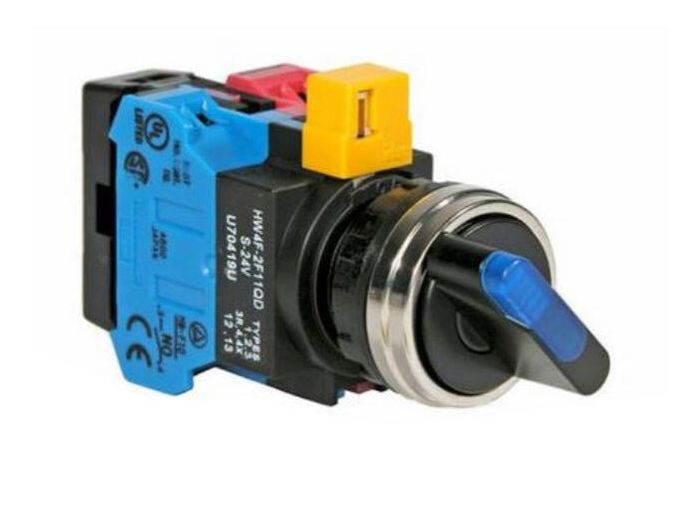

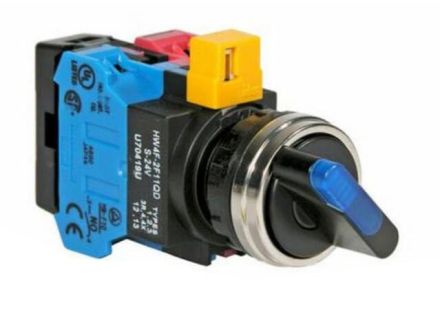

HW4F-32F20QD-W-24V
MFG #:
HW4F-32F20QD-W-24V
Specifications
| Country of Origin | Japan |
|---|---|
| Manufacturer Part Number | HW4F-32F20QD-W-24V |
| Manufacturer | IDEC |
| Family Series | IDEC Switches |
| Illuminated | Yes |
| Number of Positions | 3 |
| Mounting | 22 mm |
| Selector Function | Momentary Spring Return From Left |
| Operator Type | Knob |
| Contacts | 2NO |
| Max Voltage | 600 VAC, 600 VDC |
| Current Rating | 10 A |
| Lamp Type | LED |
| Lamp Voltage | 24 VAC, 24 VDC |
| Lens Color | White |
| Bezel | Metal Round |
| Approvals | CSA, UL |
| Protection Rating | IP65 |
| H x W x D | 1.63 " x 1.16 " x 3.01 " |
| Net Weight | 0.2183 lbs |
| Gross Weight | 0.2183 lbs |
Description
Switches, Series
Item #
HW4F-32F20QD-W-24V
HW Mtl Bzl Ill SS 3pos Sprg-Lt LED
