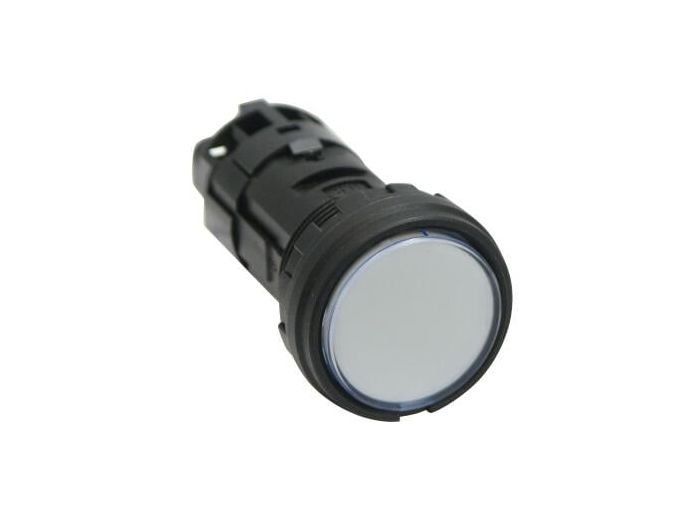

HW4P-1FQD-W-120V IDEC Pilot Lights, HW Series
MFG #:
HW4P-1FQD-W-120V
Pilot Light, Wht, 120V Direct, LED, Full Voltage, 22mm Mounting, Round Flush Lens, Chrome Metal Bezel
Specifications
| Country of Origin | Japan |
|---|---|
| Manufacturer Part Number | HW4P-1FQD-W-120V |
| Manufacturer | IDEC |
| Product Series | HW |
| Family Series | IDEC Pilot Lights, HW Series |
| Push-to-Test | No |
| Mounting | 22 mm |
| Lamp Type | LED |
| Lens/Button Shape | Flat Round |
| Lens Color | White |
| Bezel | Chrome Metal |
| Nominal Lamp Voltage | 120 VAC |
| Protection Rating | IP65 |
| Terminal Type | Screw |
| NEMA Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 3S, NEMA 4, NEMA 4X, NEMA 5, NEMA 12, NEMA 13 |
| Approvals | CE, CSA, UL |
| H x W x D | 1.10 " x 1.10 " x 2.05 " |
| Gross Weight | 0.07 lbs |
| Net Weight | 0.05 lbs |
Description
Pilot Lights, HW Series
Item #
HW4P-1FQD-W-120V
Pilot Light, Wht, 120V Direct, LED,
HW Series Information
- 22mm Mounting Size
- Incandescent or LED Types
- IP20 or Spring Screw Terminals
- NEMA 1,2,3,3R,3S,4,4X,5,12,13
- UL; CSA; CE Approvals
- Easy to Assemble
- Choice of Plastic or Metallic Bezels
- Tamperproof Construction
