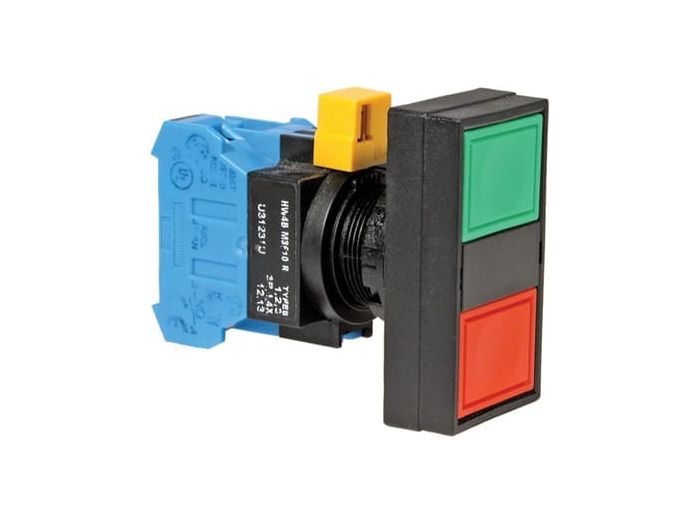

Name: HW7D-B11GR IDEC Switches, NH-HMQ-H1 Series
Brand: IDEC
SKU: HW7D-B11GR-IDEC
Availability: BackOrder

Specifications

Specifications
Country of Origin	Japan
Manufacturer Part Number	HW7D-B11GR
Manufacturer	IDEC
Product Series	NH-HMQ-H1
Family Series	IDEC Switches, NH-HMQ-H1 Series
Illuminated	No
Operation	Momentary
Mounting	22 mm
Max Voltage	600 VAC, 600 VDC
Current Rating	10 A
Bezel	Plastic Rectangle
Lens/Button Shape	Rectangle Flush
Operator Color	Green, Red
Protection Rating	IP65
Approvals	CSA, UL
H x W x D	1.55 " x 1.25 " x 2.15 "
Net Weight	0.045 lbs
Gross Weight	0.06 lbs

Description

Switches, NH-HMQ-H1 Series

Item #

HW7D-B11GR

HW Dual PB Operator Mmntry Flsh/Flsh

NH-HMQ-H1 Series Information

Choice of Plastic or Metallic Bezels
IP20 or Spring Screw Terminals
Flush, Extended or Mushroom
Tamperproof Construction
22mm Mounting Size
Easy to Assemble

IDEC's HW Series switches are considered "the best engineered switch in the world". Complete with finger‑safe contact blocks offering IP20 protection, these 22mm switches include illuminated and non‑illuminated pushbuttons, pilot lights, selector switches, and emergency stops. All switches also incorporate mechanically keyed safety locking levers, ensuring correct installation and maintaining safety in high‑vibration applications.
