Specifications
| Country of Origin | Japan |
|---|---|
| Manufacturer Part Number | HW7D-L21F2002Q9R-GR |
| Manufacturer | IDEC |
| Product Series | HW |
| Family Series | IDEC Switches, HW Series |
| Illuminated | Yes |
| Operation | Interlock |
| Mounting | 22 mm |
| Contacts | 2NO, 2NC |
| Max Voltage | 600 VAC, 600 VDC |
| Current Rating | 10 A |
| Bezel | Plastic Rectangle |
| Lamp Type | LED |
| Lens/Button Shape | Rectangle Extended |
| Operator Color | Red, Green |
| Protection Rating | IP65 |
| Approvals | CSA, UL |
| Net Weight | 0 lbs |
| Gross Weight | 0 lbs |
Description

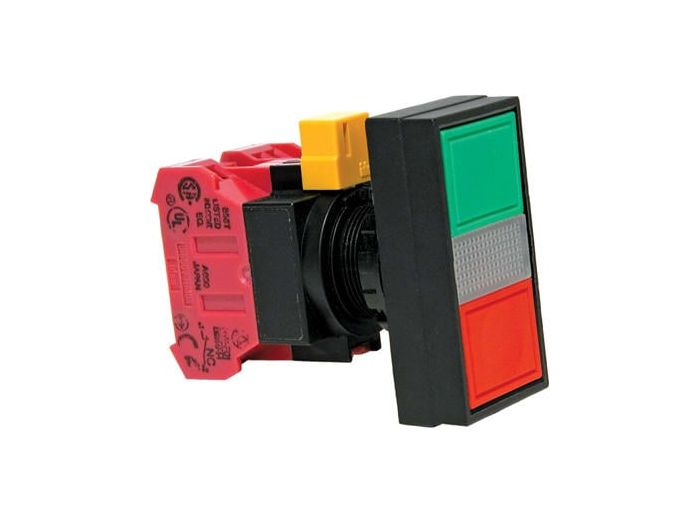

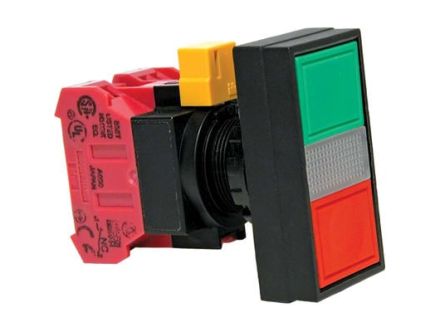

Switches, HW Series
Item #
HW7D-L21F2002Q9R-GR
HW Dual PB w/PL Intrlck Flsh/Flsh
HW Series Information
- Choice of Plastic or Metallic Bezels
- IP20 or Spring Screw Terminals
- Incandescent or LED Types
- Tamperproof Construction
- 22mm Mounting Size
- Easy to Assemble
Documents & Resources Links
Videos
Added to Cart
HW7D-L21F2002Q9R-GR IDEC Switches, HW Series, HW Dual PB w/PL Intrlck Flsh/Flsh
Series HW
MFG #:
HW7D-L21F2002Q9R-GR
HW Dual PB w/PL Intrlck Flsh/Flsh LED FV T-2NO B-2NC Fngr-safe Cntcts
