JGE3250FAG
Eaton Circuit Breakers, G Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

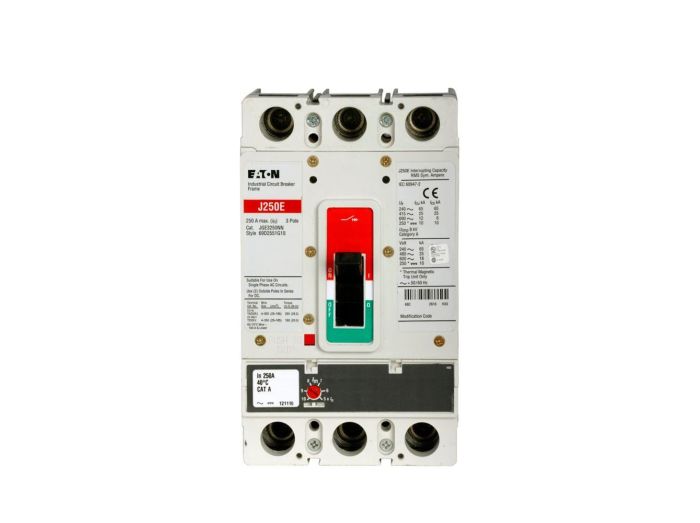

JGE3250FAG Eaton Circuit Breakers, G Series
Circuit Breaker, 3-P, 250A/600V,
MFG Item Number
EATON-69D2564G12
Item Number
JGE3250FAG
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Accessories
Description
Circuit Breakers, G Series
Item #
JGE3250FAG
Circuit Breaker, 3-P, 250A/600V,
G Series Information
- Compact Design Frees up Panel Space
- Common Field‑Fit Internal Accessories Make Installation and Custom Configuration Easy
- Advanced Trip Unit Functionality Offers a Wide Range of Adjustment for Maximum Flexibility
- Features High‑Speed "Blow‑Open" Action
- Mounting Hardware and Lugs are Included for Convenience
Eaton Series G molded case circuit breakers provide increased performance in considerably less space than standard circuit breakers or comparable fusible devices. The "G" signifies global applications: Series G circuit breakers are marked with UL, CSA, CE, IEC and KEMA KEUR listings. The Series G family includes five frame sizes in ratings from 15 to 2500 amperes. Series G offers a choice of several interrupting capacities up to 200 kA at 480 volts AC (200 kA at 240 volts AC).
Specifications
| Manufacturer Part Number | EATON-69D2564G12 |
|---|---|
| Manufacturer | Eaton |
| Product Series | G |
| Family Series | Eaton Circuit Breakers, G Series |
| Description | Circuit Breaker, 3-P, 250A/600V, 25KAIC@480V, Fixed Thermal-Adj Mag, Inclft.s Line & Load Side Terminals |
| Poles | 3 |
| Current Rating | 250 A |
| Max Voltage | 480 VAC |
| Trip Unit | Fixed Thermal / Adj. Magnetic |
| 100% Rated | No |
| UL Standard | 508 |
| Approvals | CE, CSA, IEC, UL |
| H x W x D | 6.50 " x 5.00 " x 9.50 " |
| Gross Weight | 6.53 lbs |
| Net Weight | 6.5 lbs |
