JGH3090FAG Eaton Circuit Breakers, G Series
3P 90A 65ka480 70ka415 Fix/Adj W/L/L
MFG Item Number
EATON-69D2566G04
Eaton

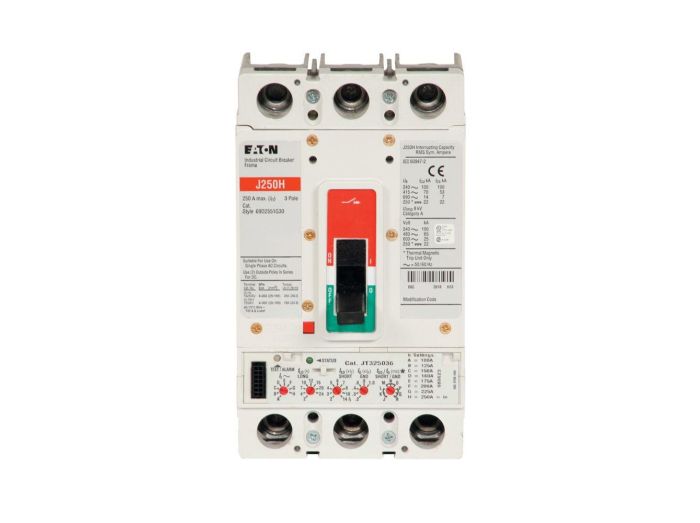

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

JGH3090FAG Eaton Circuit Breakers, G Series

3P 90A 65ka480 70ka415 Fix/Adj W/L/L
MFG Item Number
EATON-69D2566G04
Eaton
Item Number
JGH3090FAG
Series
G
More specs
This item cannot be canceled or returned

Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Request Lead Time

Description

Circuit Breakers, G Series
Item #
JGH3090FAG
3P 90A 65ka480 70ka415 Fix/Adj W/L/L

G Series Information

  • Compact Design Frees up Panel Space
  • Common Field‑Fit Internal Accessories Make Installation and Custom Configuration Easy
  • Advanced Trip Unit Functionality Offers a Wide Range of Adjustment for Maximum Flexibility
  • Features High‑Speed "Blow‑Open" Action
  • Mounting Hardware and Lugs are Included for Convenience

Eaton Series G molded case circuit breakers provide increased performance in considerably less space than standard circuit breakers or comparable fusible devices. The "G" signifies global applications: Series G circuit breakers are marked with UL, CSA, CE, IEC and KEMA KEUR listings. The Series G family includes five frame sizes in ratings from 15 to 2500 amperes. Series G offers a choice of several interrupting capacities up to 200 kA at 480 volts AC (200 kA at 240 volts AC).


Links

Videos

Specifications

Specifications
Country of Origin Dominican Republic
Manufacturer Part Number EATON-69D2566G04
Manufacturer Eaton
Product Series G
Family Series Eaton Circuit Breakers, G Series
Description Eaton Series G molded case circuit breaker, JG-frame, JG, Fixed thermal, adjustable magnetic trip, Three-pole, 90A, 600 Vac, 250 Vdc, 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, 25 kAIC at 600 Vac, Line and load, 50/60 Hz
Poles 3
Current Rating 90 A
Max Voltage 480 VAC
Trip Unit Fixed Thermal / Adj. Magnetic
100% Rated No
UL Standard 508
Approvals CE, CSA, IEC, UL
H x W x D 6.50 " x 5.00 " x 9.50 "
Gross Weight 6 lbs
Net Weight 6 lbs
