Series

KBAC

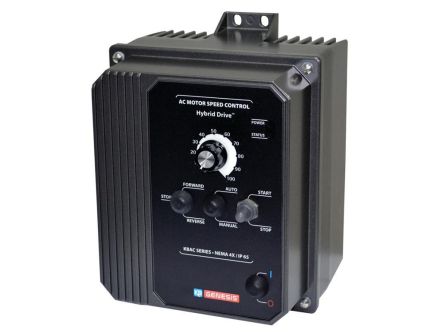

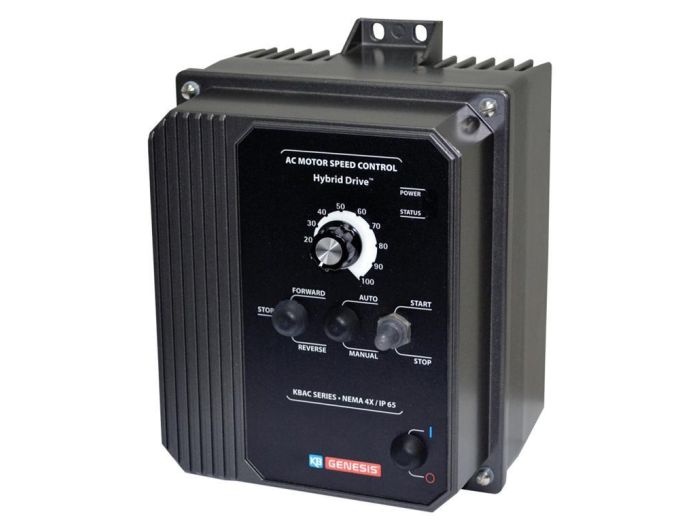

KBAC-27DGRAY KB Electronics Drives, KBAC Series

MFG #:

9520

Drive, AC, 2HP, 240V, 6.6A, NEMA 4X, 115/230V 1PH Input, 230V 3Ph Output, 7.3in.x8.5in.x7.6in., 9520

View Full Specs

Skip to the end of the images gallery

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Skip to the beginning of the images gallery

Series

KBAC

KBAC-27DGRAY KB Electronics Drives, KBAC Series

Name: KBAC-27DGRAY KB Electronics Drives, KBAC Series
Brand: KB Electronics
SKU: KBAC-27DGRAY-KB
Price: 561.67 USD
Availability: InStock

MFG #:

9520

Item Number

KBAC-27DGRAY

Drive, AC, 2HP, 240V, 6.6A, NEMA 4X, 115/230V 1PH Input, 230V 3Ph Output, 7.3in.x8.5in.x7.6in., 9520

View Full Specs

Request Lead Time

Qty

Compare

This item cannot be canceled or returned

Specifications

Specifications
Country of Origin	China
Manufacturer Part Number	9520
Manufacturer	KB Electronics
Product Series	KBAC
Family Series	KB Electronics Drives, KBAC Series
Phase	1
HP (Constant Torque Rating)	2 hp
Amps (Constant Torque Rating)	6.6 A
Brake	DC Injection
Closed Loop	No
AC Line Regenerative	No
Operator Controls	Built In
NEMA Rating	NEMA 4X
Motor Control-Max Level	V/Hz (Scalar)
Mounting	Panel
Nominal Input Voltage	90 VAC, 120 VAC, 208 VAC, 240 VAC
AC Voltage	98-132 VAC, 177-264 VAC
Protection Rating	IP65
Dynamic Braking	Not Available
Height	9.8 "
Width	7.55 "
Depth	7.25 "
Comments	This drive features an analog control panel.
H x W x D	7.15 " x 7.70 " x 9.90 "
Net Weight	10.29 lbs
Gross Weight	11.26 lbs
