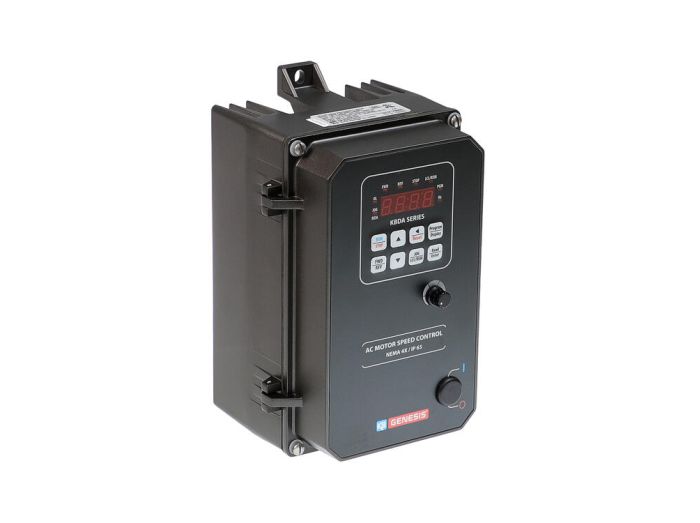

KBDA-24DGRAY
KB Electronics Drives, KBDA Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
KBDA-24DGRAY KB Electronics Drives, KBDA Series
DRIVE, AC, 1HP, 240V, NEMA-4X DIG
MFG Item Number
9536
Item Number
KBDA-24DGRAY
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Drives, KBDA Series
Item #
KBDA-24DGRAY
DRIVE, AC, 1HP, 240V, NEMA-4X DIG
KBDA Series Information
- Digital Dislay/LED Status Indicators
- Horsepower 1/8 to 5HP
- 200% Starting Torque
- 230/460 VAC
The KBDA series of AC Drives provides overload protection, prevents motor burnout and eliminates nuisance tripping. They're easy to install, energy saving, and simple to operate. The KBDA drive can be used indoors or outdoors, with no holes to drill, and no switches to install. They're customizable, which can include pre‑calibrating or programming of a stock control, adding a custom label or branding, custom software, PLC functions or designing a new control.
- Electronics Inrush Current Limit Protection
- Sensorless Flux Vector Control
- Jog‑Local/Remote
Specifications
| Manufacturer Part Number | 9536 |
|---|---|
| Manufacturer | KB Electronics |
| Product Series | KBDA |
| Family Series | KB Electronics Drives, KBDA Series |
| Description | DRIVE, AC, 1HP, 240V, NEMA-4X DIG 115/230 VAC 1P INPUT 230 VAC 3P OUTPUT, 9536 |
| Phase | 1 |
| HP (Constant Torque Rating) | 1 hp |
| Amps (Constant Torque Rating) | 3.6 A |
| Brake | DC Injection |
| Closed Loop | No |
| AC Line Regenerative | Yes |
| Operator Controls | Built In |
| NEMA Rating | NEMA 4X |
| Motor Control-Max Level | Open Loop Vector (Sensorless Vector) |
| Mounting | Panel |
| Nominal Input Voltage | 120 VAC, 208 VAC, 240 VAC, 90 VAC |
| AC Voltage | 177-264 VAC, 98-132 VAC |
| Frequency | 60 Hz |
| Protection Rating | IP65 |
| Comments | Gray Enclosure |
| H x W x D | 5.60 " x 5.50 " x 9.50 " |
| Net Weight | 5.87 lbs |
| Gross Weight | 6.32 lbs |
