KBDA-24PGRAY
KB Electronics Drives, KBDA Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

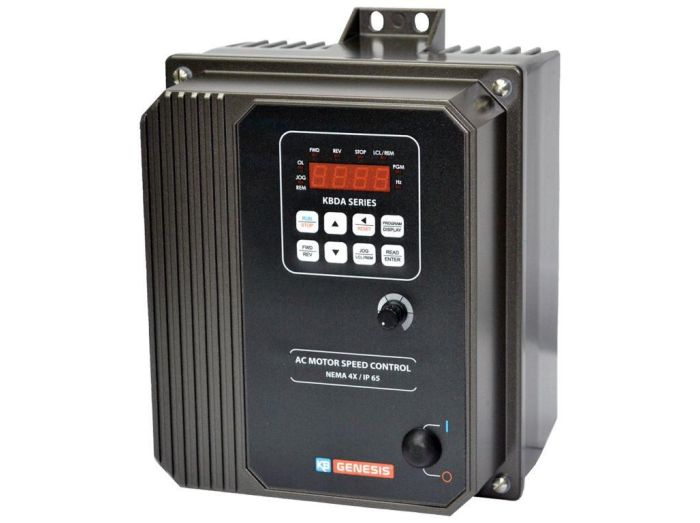

KBDA-24PGRAY KB Electronics Drives, KBDA Series
Drive, AC, 1HP, 230V 3PH Input
MFG Item Number
9766
Item Number
KBDA-24PGRAY
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Drives, KBDA Series
Item #
KBDA-24PGRAY
Drive, AC, 1HP, 230V 3PH Input
KBDA Series Information
- Digital Dislay/LED Status Indicators
- Horsepower 1/8 to 5HP
- 200% Starting Torque
- 230/460 VAC
The KBDA series of AC Drives provides overload protection, prevents motor burnout and eliminates nuisance tripping. They're easy to install, energy saving, and simple to operate. The KBDA drive can be used indoors or outdoors, with no holes to drill, and no switches to install. They're customizable, which can include pre‑calibrating or programming of a stock control, adding a custom label or branding, custom software, PLC functions or designing a new control.
- Electronics Inrush Current Limit Protection
- Sensorless Flux Vector Control
- Jog‑Local/Remote
Specifications
| Manufacturer Part Number | 9766 |
|---|---|
| Manufacturer | KB Electronics |
| Product Series | KBDA |
| Family Series | KB Electronics Drives, KBDA Series |
| Description | Drive, AC, 1HP, 230V 3PH Input 9766 |
| Phase | 3 |
| HP (Constant Torque Rating) | 1 hp |
| Amps (Constant Torque Rating) | 3.6 A |
| Brake | DC Injection |
| Closed Loop | No |
| AC Line Regenerative | Yes |
| Operator Controls | Built In |
| NEMA Rating | NEMA 4X |
| Motor Control-Max Level | Open Loop Vector (Sensorless Vector) |
| Mounting | Panel |
| Nominal Input Voltage | 208 VAC, 240 VAC |
| AC Voltage | 177-264 VAC |
| Frequency | 60 Hz |
| Protection Rating | IP65 |
| Comments | Gray Enclosure |
| H x W x D | 5.50 " x 5.50 " x 9.50 " |
| Net Weight | 5.675 lbs |
| Gross Weight | 6.16 lbs |
