Series

KBMD

KBMD-240DW/FBR KB Electronics Drives, KBMD Series

MFG #:

9371

DC SCR NEMA 1 Switch Reversing, 115/230 VAC, thru 0.75/1.5 HP 1.0/2.0 HP w/HS, 90/180 VDC ARM

View Full Specs

Skip to the end of the images gallery

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Skip to the beginning of the images gallery

Series

KBMD

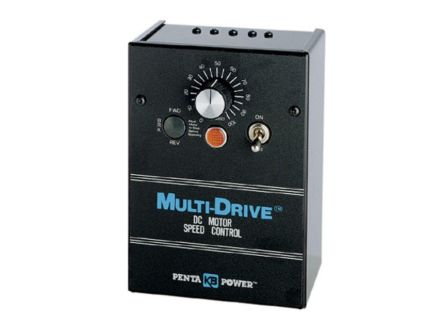

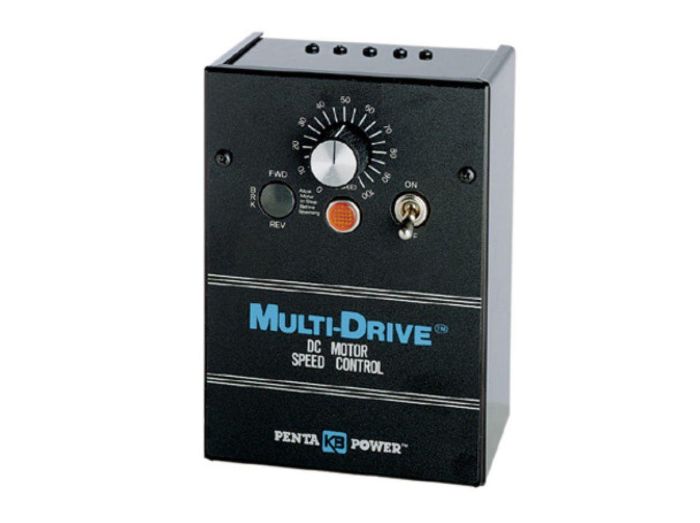

KBMD-240DW/FBR KB Electronics Drives, KBMD Series

Name: KBMD-240DW/FBR KB Electronics Drives, KBMD Series
Brand: KB Electronics
SKU: KBMD-240DW/FBR-KB
Price: 308.77 USD
Availability: InStock

MFG #:

9371

Item Number

KBMD-240DW/FBR

DC SCR NEMA 1 Switch Reversing, 115/230 VAC, thru 0.75/1.5 HP 1.0/2.0 HP w/HS, 90/180 VDC ARM

View Full Specs

Request Lead Time

Qty

Compare

This item cannot be canceled or returned

Specifications

Specifications
Country of Origin	China
Manufacturer Part Number	9371
Manufacturer	KB Electronics
Product Series	KBMD
Family Series	KB Electronics Drives, KBMD Series
Input Current	12 A
Output Armature Voltage (DC)	90 VDC, 180 VDC
Output Field Current (DC)	1 A
Operating Temperature	32-105 °F
Max Armature Current (DC)	8 A
Nominal Input Voltage	120 VAC, 240 VAC
Output Field VDC	50 VDC, 100 VDC, 200 VDC
Regen	No
Feedback	Armature
Operator Controls	Built In
NEMA Rating	NEMA 1
Approvals	cUL, UL
Comments	Includes Forward-Brake-Reverse Switch
Nominal Armature VDC	90 VDC, 180 VDC
H x W x D	4.10 " x 5.15 " x 7.20 "
Net Weight	2.34 lbs
Gross Weight	2.7 lbs

Accessories

Compare compatible accessories for this product.

Accessories comparison
Part	Description	Series	SKU	Price
POT,REPLNEMA-4	Replacement Potentiometer Kit for NEMA 4X Controls, 9510	KB Electronics Drives	POT,REPLNEMA-4-KB	Price unavailable
RESISTOR015OHMS	Horsepower Resistor, 0.015 Ohm, 9842	KB Electronics Drives	RESISTOR015OHMS-KB	Price unavailable
RESISTOR01OHMS	HORSEPOWER RESISTOR, 0.01 OHM, 9843 9843	KB Electronics Drives	RESISTOR01OHMS-KB	Price unavailable
RESISTOR025OHMS	Horsepower Resistor, 0.025 Ohm, 9841	KB Electronics Drives	RESISTOR025OHMS-KB	Price unavailable
RESISTOR035OHMS	Horsepower Resistor, 0.035 Ohm, 9840	KB Electronics Drives	RESISTOR035OHMS-KB	Price unavailable
RESISTOR05OHMS	Horsepower Resistor, 0.05 Ohm, 9839	KB Electronics Drives	RESISTOR05OHMS-KB	Price unavailable
RESISTOR10OHMS	Horsepower Resistor, 0.1 Ohm, 9838	KB Electronics Drives	RESISTOR10OHMS-KB	Price unavailable
RESISTOR18OHMS	Horsepower Resistor, 0.18 Ohm, 9837	KB Electronics Drives	RESISTOR18OHMS-KB	Price unavailable
RESISTOR1OHMS	Horsepower Resistor, 1 Ohm, 9833	KB Electronics Drives	RESISTOR1OHMS-KB	Price unavailable
RESISTOR25OHMS	Horsepower Resistor, 0.25 Ohm, 9836	KB Electronics Drives	RESISTOR25OHMS-KB	Price unavailable
RESISTOR35OHMS	Horsepower Resistor, 0.35 Ohm, 9835	KB Electronics Drives	RESISTOR35OHMS-KB	Price unavailable
RESISTOR51OHMS	Horsepower Resistor, 0.51 Ohm, 9834	KB Electronics Drives	RESISTOR51OHMS-KB	Price unavailable
