Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series

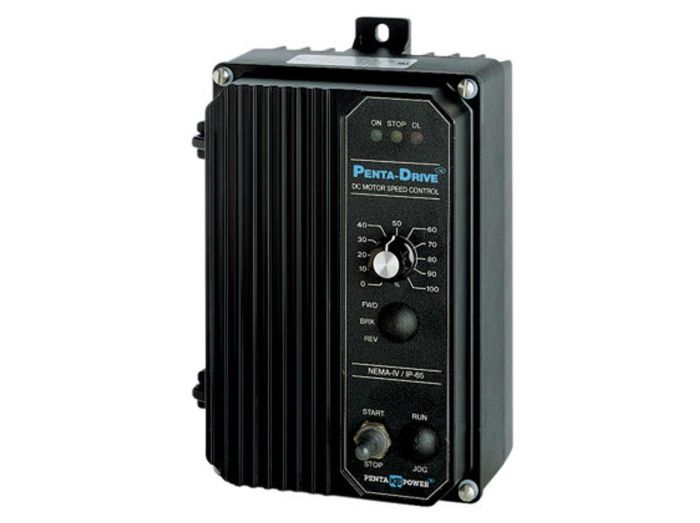

KBPC-240DBLACK KB Electronics Drives, KBPC Series
MFG #:
9338
Item Number
KBPC-240DBLACK
Drive, DC, 10.2A, 120/240VAC, N4X, 1.0/2.0 HP@90/180VDC Armature, 12A Armature Fuse Included
Specifications
| Country of Origin | United States |
|---|---|
| Manufacturer Part Number | 9338 |
| Manufacturer | KB Electronics |
| Product Series | KBPC |
| Family Series | KB Electronics Drives, KBPC Series |
| Input Current | 15 A |
| Output Armature Voltage (DC) | 90 VDC, 180 VDC |
| Phase | 1 |
| Output Field Current (DC) | 1 A |
| Operating Temperature | 32-122 °F |
| Max Armature Current (DC) | 10.2 A |
| Nominal Input Voltage | 120 VAC, 240 VAC |
| Output Field VDC | 50 VDC, 100 VDC, 200 VDC |
| Regen | No |
| Feedback | Armature, Tachometer |
| Operator Controls | Built In |
| NEMA Rating | NEMA 4X |
| Approvals | cUL, UL |
| Nominal Armature VDC | 90 VDC, 180 VDC |
| H x W x D | 4.90 " x 5.90 " x 9.40 " |
| Net Weight | 4.51 lbs |
| Gross Weight | 4.94 lbs |
Description
Drives, KBPC Series
Item #
KBPC-240DBLACK
Drive, DC, 10.2A, 120/240VAC, N4X,
KBPC Series Information
- Rated for 1‑3 HP at 115 or 230 VAC, 50/60 Hz
- Washdown and Watertight for Indoor and Outdoor Use
- Acrylic Coated Aluminum Housing
- Electronic Overload Protection
- LED Indicator Array
