KDRC1HE01 TCI Line Reactors, KDR Series
KDR, 480V, 35A, 25HP, 3 Phase, Type
MFG Item Number
KDRC1HE01
TCI

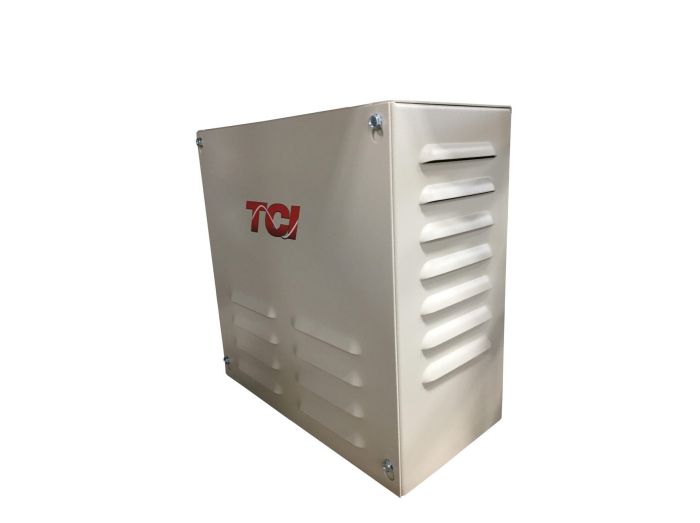

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

KDRC1HE01 TCI Line Reactors, KDR Series

KDR, 480V, 35A, 25HP, 3 Phase, Type
MFG Item Number
KDRC1HE01
TCI
Series
KDR
More specs
This item cannot be canceled or returned

Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Request Lead Time

Description

KDR Series
Item #
KDRC1HE01
KDR, 480V, 35A, 25HP, 3 Phase, Type

KDR Series Information

  • 3% & 5% Impedance units
  • Harmonic Compensation ‑ Use on drive input or output
  • Reduces Line notching
  • Reduces Inverter Overcurrent and Overvoltage
  • Improves True Power Factor
The KDR series models cover the complete range of impedance needs and are available for the line or load side of a PWM drive. Properly sized for the application, a KDR reactor is guaranteed to eliminate any AC drive overvoltage tripping problems. KDR Optimized Drive Reactors are warranted against manufacturer's defect for the life of the drive with which they are installed.
  • UL Listed Available

Links

Specifications

Specifications
Manufacturer Part Number KDRC1HE01
Manufacturer TCI
Product Series KDR
Family Series TCI Line Reactors, KDR Series
Description KDR, 480V, 35A, 25HP, 3 Phase, Type 1, Input Line Inductor, High Impedance, UL Listed
Horsepower 25 hp
Nominal Voltage 480 V
Voltage 480 V
Phase 3
Enclosed Yes
Current Rating 35 A
Mounting Surface
NEMA Rating NEMA 1
Approvals UL
Net Weight 25.4 lbs
Gross Weight 25.4 lbs
