Specifications

Specifications
Manufacturer Part Number	KDRJ2L
Manufacturer	TCI
Product Series	KDR
Family Series	TCI Line Reactors, KDR Series
Horsepower	350 hp
Nominal Voltage	480 V
Voltage	480 V
Phase	3
Enclosed	No
Current Rating	414 A
Terminals	Tab
Mounting	Surface
Approvals	cURus, UR
H x W x D	10.00 " x 9.30 " x 11.30 "
Net Weight	74 lbs
Gross Weight	70 lbs

Description

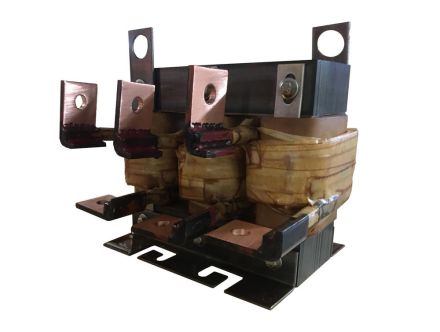

Line Reactors, KDR Series

Item #

KDRJ2L

REACTOR 480V 350HP LOW Z

KDR Series Information

3% & 5% Impedance units
Harmonic Compensation ‑ Use on drive input or output
Reduces Line notching
Reduces Inverter Overcurrent and Overvoltage
Improves True Power Factor

The KDR series models cover the complete range of impedance needs and are available for the line or load side of a PWM drive. Properly sized for the application, a KDR reactor is guaranteed to eliminate any AC drive overvoltage tripping problems. KDR Optimized Drive Reactors are warranted against manufacturer's defect for the life of the drive with which they are installed.
