Series
KIT-FC6A-24-RA-HG1G IDEC Programmable Logic Controllers, FC6A Series
MFG #:
KIT-FC6A-24-RA-HG1G

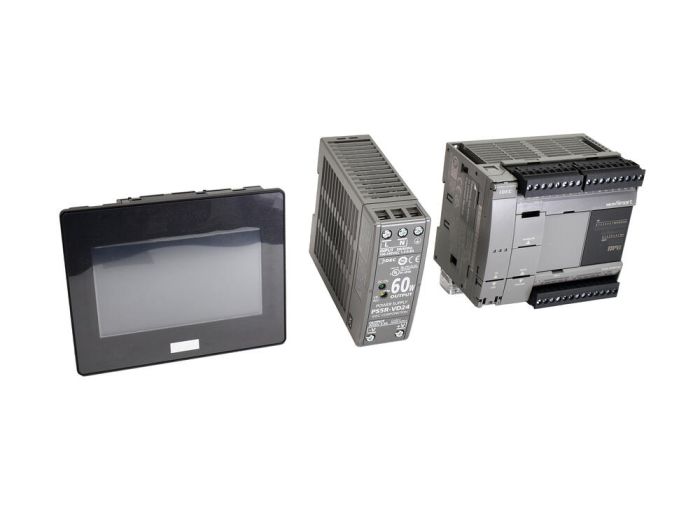

PLC & HMI Starter Kit, 24 I/O Pentra 4.3in. HG1G color TFT, Software, 60W Power Supply, and Cables
Specifications
| Country of Origin | Japan |
|---|---|
| Manufacturer Part Number | KIT-FC6A-24-RA-HG1G |
| Manufacturer | IDEC |
| Product Series | FC6A |
| Family Series | IDEC Programmable Logic Controllers, FC6A Series |
| Voltage | 100-240 VAC |
| Nominal Voltage | 120 VAC, 240 VAC |
| Number of Inputs & Type | 14 - Digital |
| Number of Outputs & Type | 10 - Relay |
| Expandable | Yes |
| Display Type | I/O Indicator LEDs |
| Communication | Ethernet, RS-232C/RS-485 |
| Memory Size | 384 kB |
| Mounting | DIN Rail, Panel Mount |
| Maximum I/O Expansions | 504 |
| Embedded Input Voltage | 24 VDC |
| Embedded Output Voltage | 24 VDC |
| Number of Pulsed Outputs | 4 |
| Embedded Ethernet | Yes |
| Modbus RTU Master | Yes |
| Modbus RTU Slave | Yes |
| Internal Counters | 512 |
| H x W x D | 7.30 " x 10.85 " x 12.95 " |
| Net Weight | 4.24 lbs |
| Gross Weight | 4.24 lbs |
Description
Programmable Logic Controllers, FC6A Series
Item #
KIT-FC6A-24-RA-HG1G
PLC & HMI Starter Kit, 24 I/O Pentra
FC6A Series Information
- Embedded Ethernet Port
- Maximum 126 analog I/O
- Maximum 520 Digital I/O
- Embedded SD Memory Port
- Large Programming and Data Memory
