Series

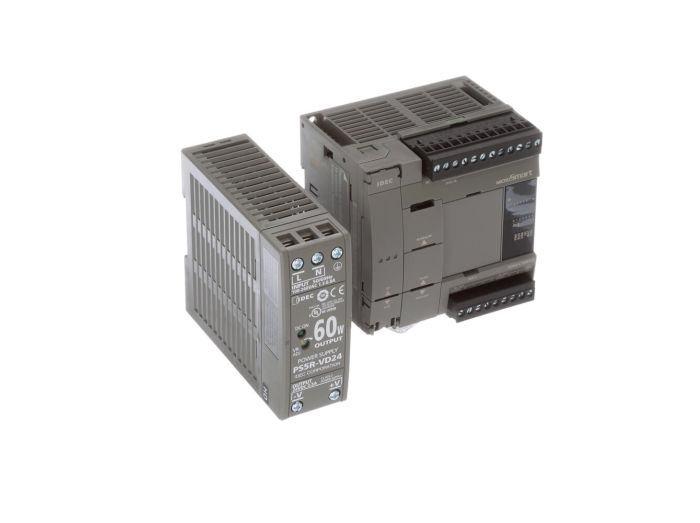

KIT-FC6A-40-RC IDEC Programmable Logic Controllers, FC6A Series
MFG #:
KIT-FC6A-40-RC
FC6A 40IO Starter Kit 24VDC Relay Output, Software, power supply, and programming cable
Specifications
| Country of Origin | Taiwan |
|---|---|
| Manufacturer Part Number | KIT-FC6A-40-RC |
| Manufacturer | IDEC |
| Product Series | FC6A |
| Family Series | IDEC Programmable Logic Controllers, FC6A Series |
| Nominal Voltage | 24 VDC |
| Number of Inputs & Type | 24 - Digital |
| Number of Outputs & Type | 16 - Relay |
| Expandable | Yes |
| Display Type | I/O Indicator LEDs |
| Communication | Ethernet, RS-232C/RS-485 |
| Memory Size | 384 kB |
| Mounting | DIN Rail, Panel Mount |
| Maximum I/O Expansions | 520 |
| Embedded Input Voltage | 24 VDC |
| Embedded Output Voltage | 24 VDC |
| Number of Pulsed Outputs | 4 |
| Embedded Ethernet | Yes |
| Modbus RTU Master | Yes |
| Modbus RTU Slave | Yes |
| Internal Counters | 512 |
| H x W x D | 3.00 " x 4.05 " x 6.45 " |
| Net Weight | 1.135 lbs |
| Gross Weight | 1.705 lbs |
Description
Programmable Logic Controllers, FC6A Series
Item #
KIT-FC6A-40-RC
FC6A 40IO Starter Kit 24VDC Relay
FC6A Series Information
- Embedded Ethernet Port
- Maximum 126 analog I/O
- Maximum 520 Digital I/O
- Embedded SD Memory Port
- Large Programming and Data Memory
