KLR35ATB TCI Line Reactors, KLR Series
Reactor, 35A, 0.630mH, 3PH, Open
MFG Item Number
KLR35ATB
TCI

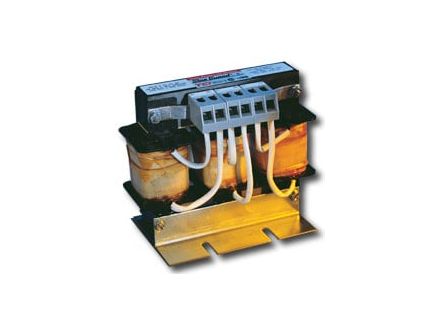

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

KLR35ATB TCI Line Reactors, KLR Series

Reactor, 35A, 0.630mH, 3PH, Open
MFG Item Number
KLR35ATB
TCI
Series
KLR
More specs
This item cannot be canceled or returned

Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Request Lead Time

Description

Line Reactors, KLR Series
Item #
KLR35ATB
Reactor, 35A, 0.630mH, 3PH, Open

KLR Series Information

  • Variety of Impedance units
  • 3 Phase
  • All Cooper Windings
  • Variety of Terminal Options
  • UL Recognized; CSA
TCI KLR series three phase AC reactors are intended for use as input filters for adjustable speed DC drives and as input or output filters for AC‑PWM variable frequency drives. Drive performance is significantly improved, the drives input rectifier is protected from failure or damage, and drive harmonic demands are tamed with the addition of a K‑rated reactor. KLR reactors act as interface buffers between solid state power circuits and the line or the motor. All drives, in any application, will benefit when applied with KLR series reactors.

Links

Specifications

Specifications
Manufacturer Part Number KLR35ATB
Manufacturer TCI
Product Series KLR
Family Series TCI Line Reactors, KLR Series
Description Reactor, 35A, 0.630mH, 3PH, Open 480V/25HP/34A/TBLOK/3pct. 240V/10HP/28A/TBLOK/5pct.
Horsepower 10 hp
Nominal Voltage 240 V, 480 V
Voltage 240 V, 480 V
Phase 3
Enclosed No
Current Rating 35 A
Inductance 0.00063 H
Terminals Terminal Block
Mounting Surface
Approvals CSA, cUR, UR
H x W x D 5.00 " x 5.75 " x 7.20 "
Net Weight 14 lbs
Gross Weight 16.35 lbs
