Specifications
| Manufacturer Part Number | L1430TM |
|---|---|
| Manufacturer | Baldor-ABB Motors |
| Product Series | L |
| Family Series | Baldor-ABB Motors Motors, L Series |
| Type | General Purpose |
| Horsepower | 5 hp |
| Speed | 1,800 RPM |
| RPM | 1,800 RPM |
| Phase | 1 |
| NEMA Frame | 184T |
| AC Voltage | 230 VAC |
| Nominal Voltage | 208 VAC, 240 VAC |
| Enclosure | Drip Proof |
| Mounting | Foot Mount, Rigid |
| Current Rating | 24 A |
| Inverter Duty | No |
| Composition | Steel |
| Bearing Type | Ball |
| Overload Protection | Manual |
| Length | 16.55 " |
| H x W x D | 14.63 " x 16.00 " x 21.50 " |
| Net Weight | 84 lbs |
| Gross Weight | 82 lbs |

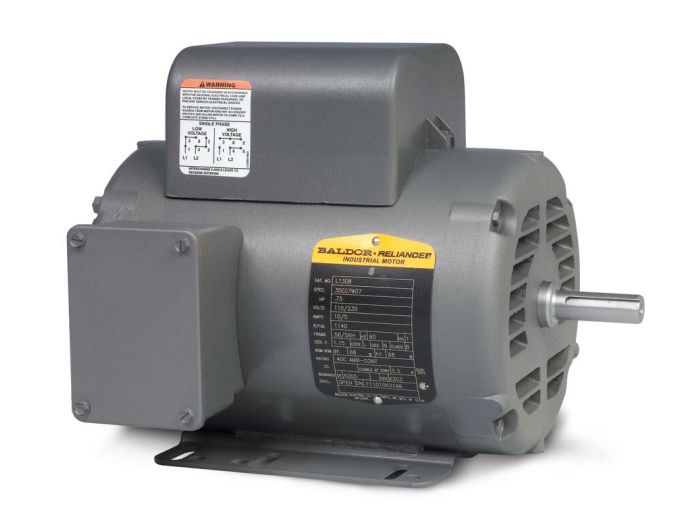

Description
Motors, L Series
Item #
L1430TM
5HP, 1725RPM, 1PH, 60HZ, 184T, 3634LC
L Series Information
- Heavy Duty Base Seam Welded to the Frame
- Dynamically Balanced Rotors
- Heavy Gauge Steel Frame
- Ball Bearings
- 1/12 thru 15 Hp
