Specifications
| Manufacturer Part Number | L3409 |
|---|---|
| Manufacturer | Baldor-ABB Motors |
| Product Series | L |
| Family Series | Baldor-ABB Motors Motors, L Series |
| Type | General Purpose |
| Horsepower | 1/2 hp |
| Speed | 1,800 RPM |
| RPM | 1,800 RPM |
| Phase | 1 |
| NEMA Frame | 48 |
| AC Voltage | 115 VAC, 230 VAC |
| Nominal Voltage | 120 VAC, 208 VAC, 240 VAC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | Foot Mount, Rigid |
| Current Rating | 3.7 A |
| Inverter Duty | No |
| Composition | Steel |
| Bearing Type | Ball |
| Overload Protection | None |
| Length | 11.35 " |
| Comments | Wound for 50 Hertz Service |
| H x W x D | 11.00 " x 11.13 " x 14.00 " |
| Net Weight | 26 lbs |
| Gross Weight | 26 lbs |
Description

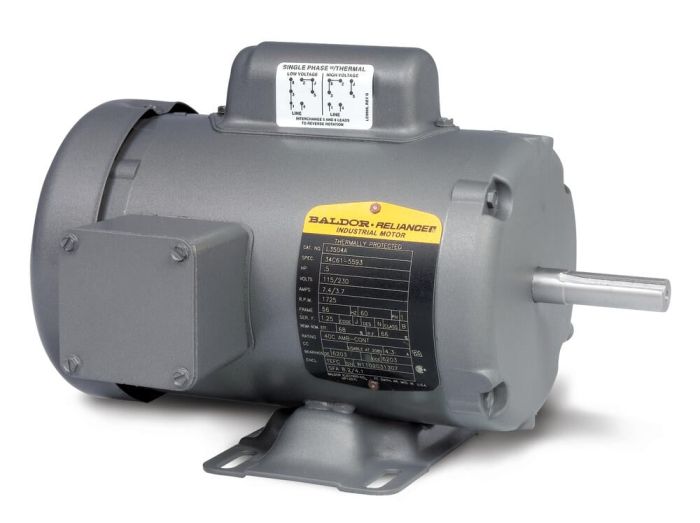

Motors, L Series
Item #
L3409
.5HP, 1725RPM, 1PH, 60HZ, 48, 3421L
L Series Information
- Heavy Duty Base Seam Welded to the Frame
- Dynamically Balanced Rotors
- Heavy Gauge Steel Frame
- Ball Bearings
- 1/12 thru 15 Hp
