Specifications
| Manufacturer Part Number | EATON-69D4643G15 |
|---|---|
| Manufacturer | Eaton |
| Product Series | LG |
| Family Series | Eaton Circuit Breakers, LG Series |
| Poles | 3 |
| Current Rating | 630 A |
| Trip Unit | Adj. Thermal / Adj. Magnetic |
| Neutral Pole | No |
| GFCI | No |
| Neutral Protection | No |
| 100% Rated | No |
| Shunt Trip | Yes |
| Undervoltage Release | Yes |
| UL Standard | 489 |
| Approvals | CE, CSA, IEC, UL |
| Gross Weight | 0 lbs |
| Net Weight | 0 lbs |
Description

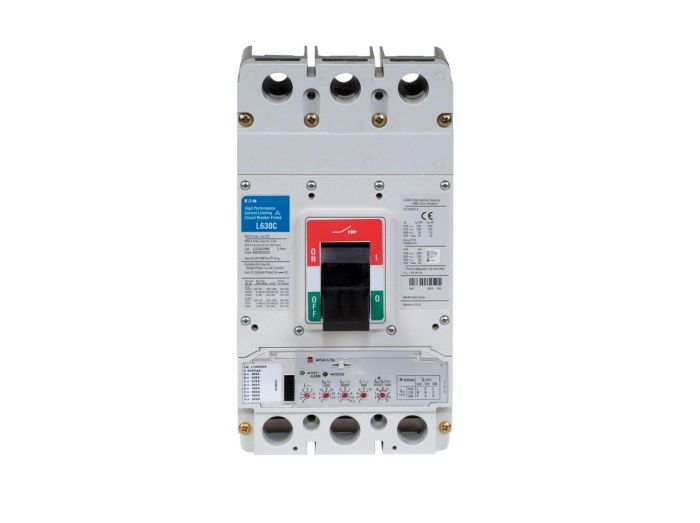

Circuit Breakers, LG Series
Item #
LGC3630AAW
LGC 3P 630A ADJUSTABLE/ADJUSTABLE
LG Series Information
- Branch Circuit Protector
- UL489
- UL/CSA/CE/IEC Listed
- 250 ~ 630 Amps
- 240/480/600 VAC 125/250 VDC
- Designed for Global Use
- Electronic Trip Units Available
- Built‑in ground fault protection down to 20 amperes.
- UL‑listed and IEC‑rated, 30 mA ground fault/earth leakage modules.
Documents & Resources Links
Videos
Added to Cart
LGC3630AAW Eaton Circuit Breakers, LG Series, LGC 3P 630A ADJUSTABLE/ADJUSTABLE
Series LG
MFG #:
EATON-69D4643G15
LGC 3P 630A ADJUSTABLE/ADJUSTABLE BREAKER WITHOUT TERMINALS
