LGE363033GC
Eaton Circuit Breakers, G Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

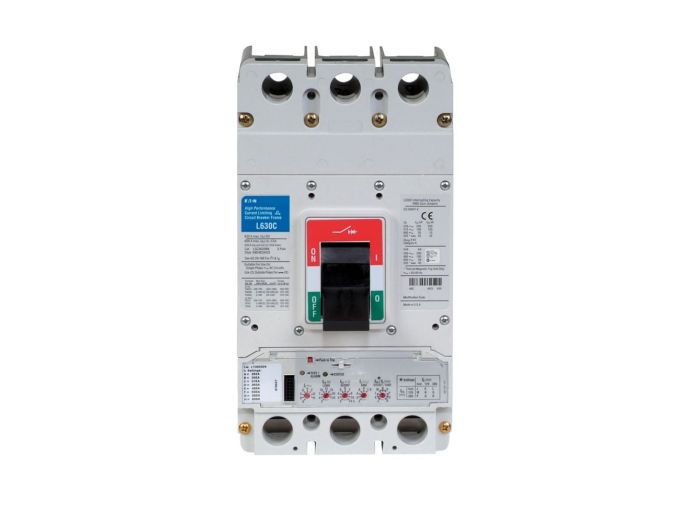

LGE363033GC Eaton Circuit Breakers, G Series
Circuit Breaker, 3-P, 630A/600V,
MFG Item Number
EATON-69D4673G04
Item Number
LGE363033GC
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Circuit Breakers, G Series
Item #
LGE363033GC
Circuit Breaker, 3-P, 630A/600V,
G Series Information
- Compact Design Frees up Panel Space
- Common Field‑Fit Internal Accessories Make Installation and Custom Configuration Easy
- Advanced Trip Unit Functionality Offers a Wide Range of Adjustment for Maximum Flexibility
- Features High‑Speed "Blow‑Open" Action
- Mounting Hardware and Lugs are Included for Convenience
Eaton Series G molded case circuit breakers provide increased performance in considerably less space than standard circuit breakers or comparable fusible devices. The "G" signifies global applications: Series G circuit breakers are marked with UL, CSA, CE, IEC and KEMA KEUR listings. The Series G family includes five frame sizes in ratings from 15 to 2500 amperes. Series G offers a choice of several interrupting capacities up to 200 kA at 480 volts AC (200 kA at 240 volts AC).
Specifications
| Manufacturer Part Number | EATON-69D4673G04 |
|---|---|
| Manufacturer | Eaton |
| Product Series | G |
| Family Series | Eaton Circuit Breakers, G Series |
| Description | Circuit Breaker, 3-P, 630A/600V, 35KAIC@480VAC, Electronic LS Trip Mechanism, With Lugs, 100pct. UL Rated |
| Poles | 3 |
| Current Rating | 630 A |
| Max Voltage | 600 VAC |
| Trip Unit | Electronic |
| UL Standard | 489 |
| Approvals | CSA, IEC, UL |
| Gross Weight | 17.4 lbs |
| Net Weight | 16 lbs |
