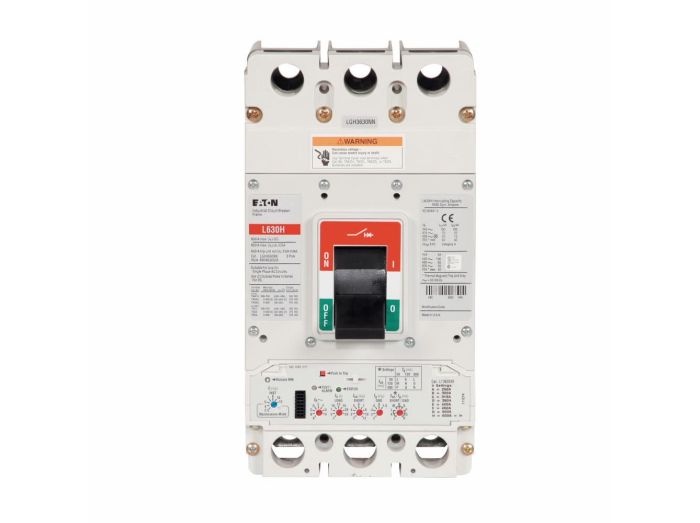

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series
LGH3500FAG Eaton Circuit Breakers, LG Series
MFG #:
EATON-69D4652G05
Item Number
LGH3500FAG
Circuit Breaker, 3-P, 500A/600VAC, 65KAIC@480VAC, Fixed Thermal-Adj Mag Trip, W/ Std Terminal Lugs
Specifications
| Manufacturer Part Number | EATON-69D4652G05 |
|---|---|
| Manufacturer | Eaton |
| Product Series | LG |
| Family Series | Eaton Circuit Breakers, LG Series |
| Poles | 3 |
| Current Rating | 500 A |
| Max Voltage | 600 VAC |
| Trip Unit | Fixed Thermal / Adj. Magnetic |
| Electronic Trip Unit | Optional |
| Mounting | Panel |
| Neutral Pole | No |
| Neutral Protection | No |
| 100% Rated | No |
| Auxiliary Switch | Optional |
| Shunt Trip | Optional |
| Undervoltage Release | Optional |
| Alarm Switch | Optional |
| UL Standard | 489 |
| H x W x D | 7.13 " x 7.75 " x 15.75 " |
| Gross Weight | 16.25 lbs |
| Net Weight | 16.2 lbs |
Description
Circuit Breakers, LG Series
Item #
LGH3500FAG
Circuit Breaker, 3-P, 500A/600VAC,
LG Series Information
- Branch Circuit Protector
- UL489
- UL/CSA/CE/IEC Listed
- 250 ~ 630 Amps
- 240/480/600 VAC 125/250 VDC
- Designed for Global Use
- Electronic Trip Units Available
- Built‑in ground fault protection down to 20 amperes.
- UL‑listed and IEC‑rated, 30 mA ground fault/earth leakage modules.
