Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series
LP3ML-120R Federal Signal Visual Signaling Devices, StreamLine LP3L Series
MFG #:
LP3ML-120R

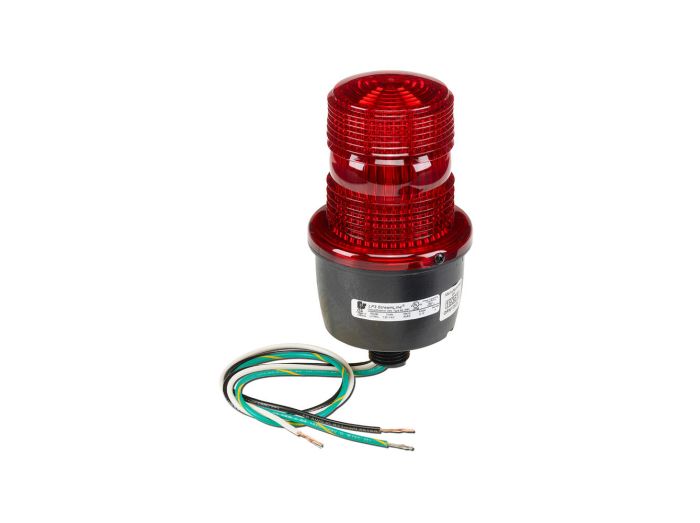

StreamLine Low Profile Steady Burning LED Light, 120V, Male Pipe Mount, Red - Available in 24VDC and 120VAC. T-mount TL, integrated 1/2-inch NPT pipe mount PL, 1/2-inch NPT male pipe mount ML or surface mount SL. Five lamp/lens colors: Amber, Blue,
Specifications
| Country of Origin | United States |
|---|---|
| Manufacturer Part Number | LP3ML-120R |
| Manufacturer | Federal Signal |
| Product Series | StreamLine LP3L |
| Family Series | Federal Signal Visual Signaling Devices, StreamLine LP3L Series |
| Operation | Continuous |
| Voltage | 120 VAC |
| Nominal Voltage | 120 VAC |
| Color | Red |
| Lamp Type | LED |
| Mounting | Conduit |
| Hazardous Location | No |
| Explosion Proof | No |
| Current Rating | 0.13 A |
| Operating Temperature | -31-150 °F |
| NEMA Rating | NEMA 4X |
| Approvals | CSA, cUL, UL |
| H x W x D | 3.13 " x 3.13 " x 5.80 " |
| Net Weight | 0.53 lbs |
| Gross Weight | 0.53 lbs |
Description
Visual Signaling Devices, StreamLine LP3L Series
Item #
LP3ML-120R
LED LIGHT MALE PIPE MT 120VAC RED
StreamLine LP3L Series Information
- 24 VDC or 120 VAC
- 5 Dome/Lens Colors
- Variety of Mounting Options
- 4X Type Enclosure
- 100,000 Hour LED Lamp Life
The LP3L is offered in four mounting configurations; LP3PL with an integrated 1/2‑inch NPT pipe mount, LP3ML features an integrated 1/2‑inch male pipe mount, LP3TL features a T formation base with 2 mounting holes for wall or flush mounting and the LP2SL features a three hole surface mounting configuration. The T‑mount and Surface mount units include surface gaskets to maintain the 4X installation.
The LP3L series is available in 24VDC and 120VAC. All models include the vibration resistant, double contact bayonet style 100,000 hour LED module.
Like all StreamLine products, the LP3L is designed with OEM applications in mind. It is economical, easy to install and attractive. Careful consideration has been given to the relationship between the LED light source and the lens design for maximum light output.
When your application calls for a compact signal with unparalleled reliability, Federal Signal's StreamLine products are the clear choice.
