Specifications
| Country of Origin | Taiwan |
|---|---|
| Manufacturer Part Number | LPS-1-120-24DC |
| Manufacturer | IMO |
| Product Series | LPS |
| Family Series | IMO Power Supplies, LPS Series |
| Power | 120 W |
| Nominal Input Voltage | 120 VAC, 240 VAC |
| AC Voltage | 90-264 VAC |
| Phase | 1 |
| Nominal Output Voltage | 24 VDC |
| Output Current | 5 A |
| Mounting | DIN Rail |
| Enclosed | Yes |
| Encapsulated | No |
| Overvoltage Protection | Yes |
| Overload Protection | Yes |
| Short Circuit Protection | Yes |
| Protection Rating | IP20 |
| Approvals | CE, cULus, cURus, TUV |
| H x W x D | 4.95 " x 1.60 " x 5.05 " |
| Net Weight | 1.135 lbs |
| Gross Weight | 1.305 lbs |
Description
Power Supplies, LPS Series
Item #

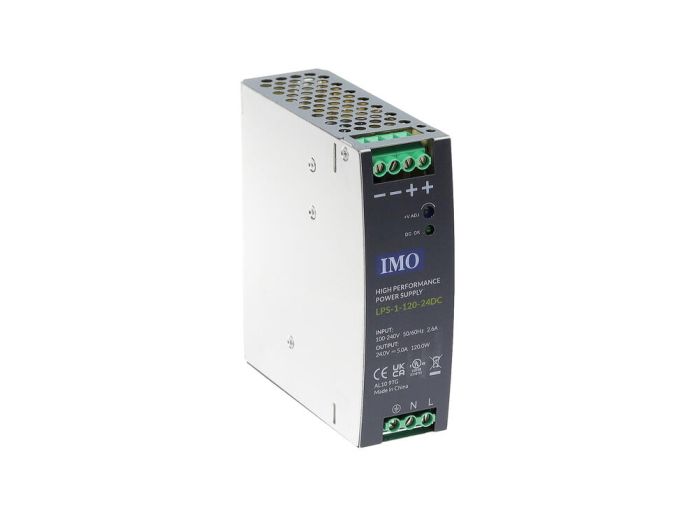

LPS-1-120-24DC
Power Supply 90-265V AC Input 24V DC Out
LPS Series Information
The LPS series of single and three‑phase UL‑approved industrial power supply offers the largest range encompassing both plastic and metal‑bodied PSUs, making them ideal for virtually every industrial application.
Featuring DC OK Relay on selected models (see Quick Feature Guide table overleaf), the LPS series offers the widest range of voltage outputs including 5V, 12V, 24V, and 48V. All models up to 100W are supplied in slimline fanless plastic bodies, whereas the models from 150W upwards are supplied in fanless metal bodies. Additionally, the metal‑bodied LPS PSUs offer Power Factor Correction for improved efficiency as well as a reduction in power demand, which not only reduces running costs but allows for more load. Three‑phase models can also accept bi‑phase power input.
Single Phase10W‑480W AC‑DC DIN Rail Power Supplies Key Features
Three Phase 240W‑480W AC‑DC DIN Rail Power Supplies Key Features
Featuring DC OK Relay on selected models (see Quick Feature Guide table overleaf), the LPS series offers the widest range of voltage outputs including 5V, 12V, 24V, and 48V. All models up to 100W are supplied in slimline fanless plastic bodies, whereas the models from 150W upwards are supplied in fanless metal bodies. Additionally, the metal‑bodied LPS PSUs offer Power Factor Correction for improved efficiency as well as a reduction in power demand, which not only reduces running costs but allows for more load. Three‑phase models can also accept bi‑phase power input.
Single Phase10W‑480W AC‑DC DIN Rail Power Supplies Key Features
- 5, 12, 24 & 48 VDC
- Universal Input: 85‑264VAC / 120‑375VDC
- High Efficiency
- Short Circuit Protection
- Internal Input Filter
- IP20 Protection Rated
Three Phase 240W‑480W AC‑DC DIN Rail Power Supplies Key Features
- 24 VDC
- 3 Phase Input: 340‑550VAC / 480‑780VDC
- Accepts Bi‑Phase Input
- High Efficiency
- Short Circuit Protection
- Internal Input Filter
- IP20 Protection Rated
