Specifications
| Country of Origin | Japan |
|---|---|
| Manufacturer Part Number | LW6MJ-3C24RGD-501 |
| Manufacturer | IDEC |
| Product Series | LW-Ring-Illuminated |
| Family Series | IDEC Switches, LW-Ring-Illuminated Series |
| Illuminated | Yes |
| Number of Positions | 3 |
| Mounting | 25 mm |
| Selector Function | Maintained |
| Operator Type | Key |
| Contacts | DPDT |
| Max Voltage | 250 VAC, 250 VDC |
| Current Rating | 3 A |
| Lamp Voltage | 24 VDC |
| Lens Color | Green, Red |
| Bezel | Metal Round |
| Terminal Type | Solder, Q.C. |
| Approvals | CE, CSA, TUV, UR |
| Protection Rating | IP65 |
| Comments | Supplied with key number 501 |
| Net Weight | 0 lbs |
| Gross Weight | 0 lbs |
Description

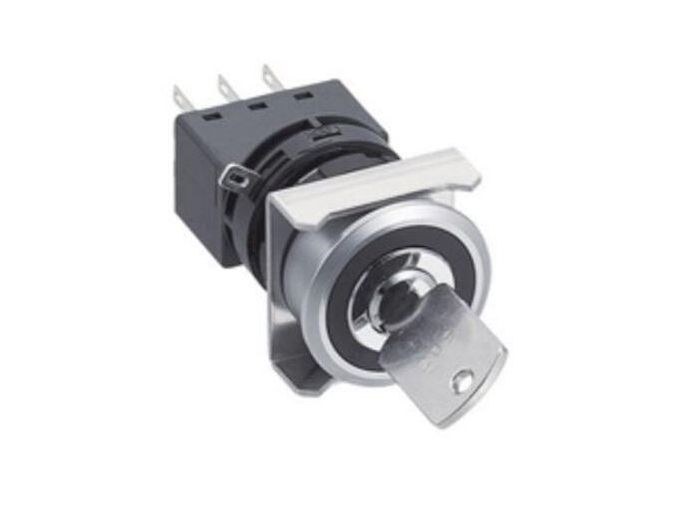

Switches, LW-Ring-Illuminated Series
Item #
LW6MJ-3C24RGD-501
Key Selector Switch ILL
LW-Ring-Illuminated Series Information
- Metal or Black Plastic Bezel Available
- Two‑Way Split Illumination
- Available Colors include Red/Red, Green/Green, White/White, Blue/Blue, Red/Green, and Green/Red
- Available in Quick Connect/Solder, PC Board, or Screw Termination
- ULR, CSA, TUV, and CE Approved
Documents & Resources Links
Added to Cart

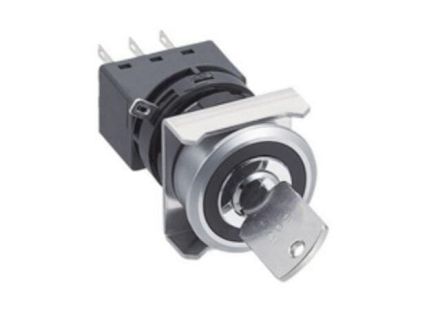

LW6MJ-3C24RGD-501 IDEC Switches, LW-Ring-Illuminated Series, Key Selector Switch ILL
