Specifications
| Country of Origin | Japan |
|---|---|
| Manufacturer Part Number | LW6MK-33C2D |
| Manufacturer | IDEC |
| Product Series | LW-Silhouette |
| Family Series | IDEC Switches, LW-Silhouette Series |
| Illuminated | No |
| Number of Positions | 3 |
| Mounting | 25 mm |
| Selector Function | Momentary 2-Way Return-to-Center |
| Operator Type | Key |
| Contacts | DPDT |
| Max Voltage | 250 VAC, 250 VDC |
| Current Rating | 3 A |
| Bezel | Metal Round |
| Terminal Type | Solder, Q.C. |
| Approvals | CE, CSA, TUV, UR |
| Protection Rating | IP65 |
| Comments | Key retained in left and right positions |
| Net Weight | 0.2183 lbs |
| Gross Weight | 0.2183 lbs |
Description
Switches, LW-Silhouette Series
Item #
LW6MK-33C2D

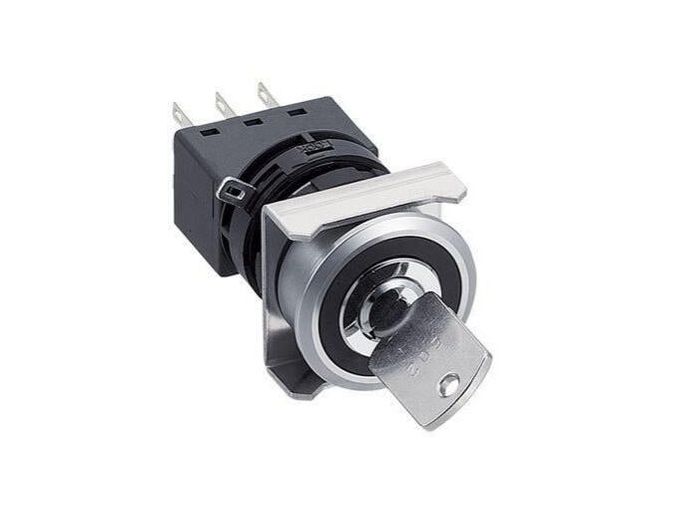

Key Selector Switch
LW-Silhouette Series Information
- PC Board Mount, Solder or Screw Terminals Available
- Round Metallic or Plastic Bezels are Available
- Collective Mounting Saves Space
- Pushbuttons, Pilot Lights, Illuminated Pushbuttons, Selector Switches, Key Selector Switches, and Illuminated Selector Switches
- Square Pushbuttons also Available with Switchguards
- Key Selector Switches with High‑Security Lock Mechanism
- Separate Contacts with a Locking Lever Enable Easy Installation even when Mounted Collectively
- Gold (Gold‑Clad Silver) or Silver Contacts.
- IP65 Protection
- UL, CSA, CE, and TUV Approved
Documents & Resources Links
Added to Cart

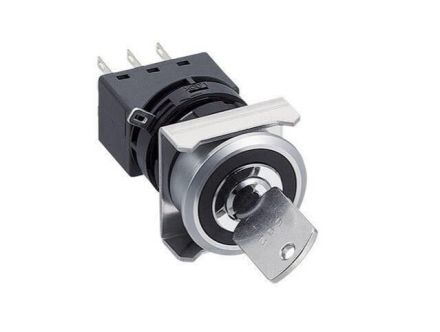

LW6MK-33C2D IDEC Switches, LW-Silhouette Series, Key Selector Switch
