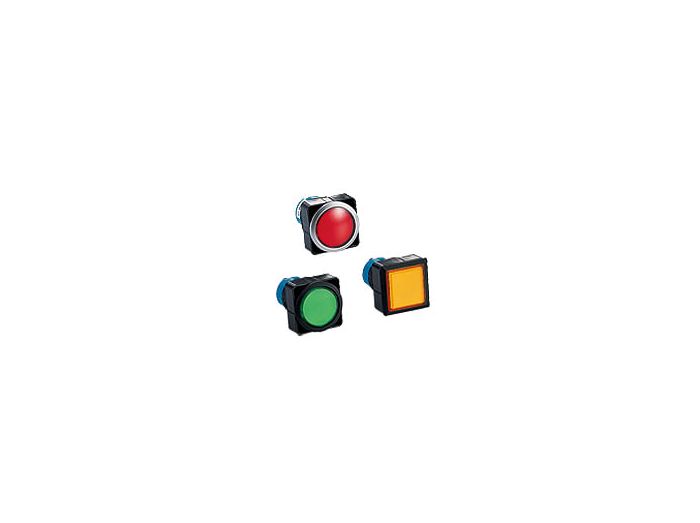

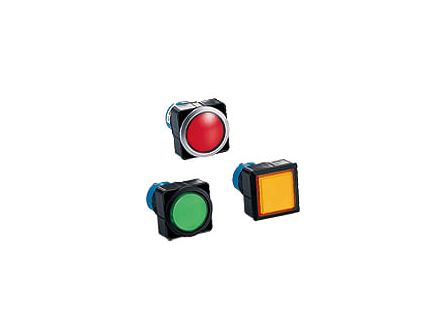

Name: LW7P-13MY IDEC Pilot Lights, LW-Silhouette Series
Brand: IDEC
SKU: LW7P-13MY-IDEC
Price: 42.22 USD
Availability: BackOrder

Specifications

Specifications
Country of Origin	Japan
Manufacturer Part Number	LW7P-13MY
Manufacturer	IDEC
Product Series	LW-Silhouette
Family Series	IDEC Pilot Lights, LW-Silhouette Series
Push-to-Test	No
Mounting	25 mm
Lamp Type	LED
Lens/Button Shape	Flat Square
Lens Color	Yellow
Bezel	Black Plastic
Nominal Lamp Voltage	12 VAC, 12 VDC
Protection Rating	IP65
Terminal Type	Screw
Approvals	CE, CSA, TUV, UL
H x W x D	1.15 " x 1.00 " x 1.75 "
Gross Weight	0.06 lbs
Net Weight	0.045 lbs

Description

Pilot Lights, LW-Silhouette Series

Item #

LW7P-13MY

Pilot Light, Ylw, 12V Direct, LED,

LW-Silhouette Series Information

PC Board Mount, Solder or Screw Terminals Available
Round Metallic or Plastic Bezels are Available
Collective Mounting Saves Space
Pushbuttons, Pilot Lights, Illuminated Pushbuttons, Selector Switches, Key Selector Switches, and Illuminated Selector Switches
Square Pushbuttons also Available with Switchguards
Key Selector Switches with High‑Security Lock Mechanism
Separate Contacts with a Locking Lever Enable Easy Installation even when Mounted Collectively
Gold (Gold‑Clad Silver) or Silver Contacts.
IP65 Protection
UL, CSA, CE, and TUV Approved

Documents & Resources

Documents & Resources Links

Alternatives

Compare available alternatives using the specifications that matter for this product.

Alternatives comparison
Image	Part	Description	Mounting	Series	Price	Action
	LW7P-13MA	Pilot Light, Amb, 12V Direct, LED, Full Voltage, 25mm Mounting, Screw Terminals, Square Flush Bezel	25 mm	LW-Silhouette	Price unavailable
