M200-04400135A10101AB100 Control Techniques Drives, Unidrive M Series
MFG #:
M200-04400135A10101AB100
Unidrive 460VAC, Max Output HP: Norm Duty - 13.5A (7.5HP), Hvy Duty - 13.5A (7.5)
Specifications
| Manufacturer Part Number | M200-04400135A10101AB100 |
|---|---|
| Manufacturer | Control Techniques |
| Product Series | Unidrive M |
| Family Series | Control Techniques Drives, Unidrive M Series |
| Phase | 3 |
| HP (Constant Torque Rating) | 7.5 hp |
| HP (Variable Torque Rating) | 7.5 hp |
| Amps (Constant Torque Rating) | 13.5 A |
| Amps (Variable Torque Rating) | 13.5 A |
| Brake | DC Injection, Dynamic Braking Transistor Included |
| Closed Loop | No |
| AC Line Regenerative | No |
| Operator Controls | Built In |
| Motor Control-Max Level | Open Loop Vector (Sensorless Vector) |
| Mounting | Panel |
| Nominal Input Voltage | 347 VAC, 380 VAC, 415 VAC, 480 VAC |
| AC Voltage | 342-528 VAC |
| Frequency | 550 Hz |
| Frame Size | 4 |
| Protection Rating | IP20 |
| Dynamic Braking | Included |
| H x W x D | 6.90 " x 4.50 " x 10.90 " |
| Net Weight | 6.9 lbs |
| Gross Weight | 8.42 lbs |
Description
Drives, Unidrive M Series
Item #
M200-04400135A10101AB100
Unidrive 460VAC, Max Output HP:
Unidrive M Series Information
- Variable Speed
- 1 or 3 Phases
- Panel Mounted
Documents & Resources Links

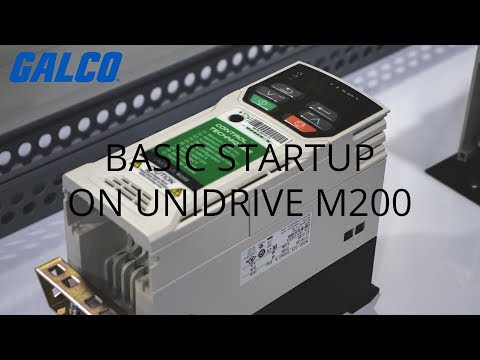

Videos
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Voltage | Mounting | Series | Price | Action |
|---|---|---|---|---|---|---|---|
|
C200-04400135A10101AB100 | Drive, AC, 7.5HP, 480V, 13.5A, CT,OP 480Vin 3PH 7.5HP 13.5A VT W/DB Trans 10.9in.Hx4.5in.Wx6.9in.D | 380-480 VAC | Panel | Commander C200 |
Price unavailable
|
