Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series
M22-D-R Eaton Switches, EM22 Series
MFG #:
M22-D-R

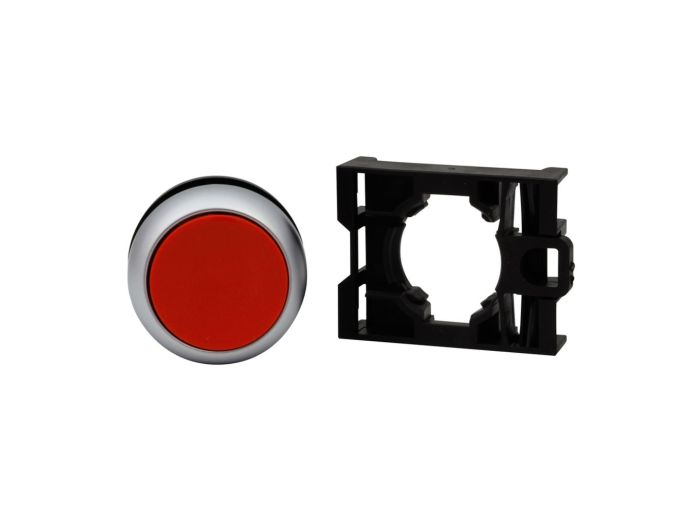

Eaton 22.5 mm RMQ-Titan Pushbutton,Red Actuator,Silver bezel,IP67, IP69K,Non-illuminated,Flush mounting,NEMA 4X, 13,5,000,000 operations,Momentary,22.5 mm,Flush Pushbutton,M22
Specifications
| Country of Origin | Germany |
|---|---|
| Manufacturer Part Number | M22-D-R |
| Manufacturer | Eaton |
| Product Series | EM22 |
| Family Series | Eaton Switches, EM22 Series |
| Illuminated | No |
| Operation | Momentary |
| Mounting | 22 mm |
| Bezel | Plastic Round |
| Lens/Button Shape | Round Flush |
| Operator Color | Red |
| Protection Rating | IP67, IP69K |
| NEMA Rating | NEMA 4X, NEMA 13 |
| H x W x D | 1.00 " x 2.00 " x 2.00 " |
| Net Weight | 0.1 lbs |
| Gross Weight | 0.1 lbs |
Description
Switches, EM22 Series
Item #
M22-D-R
NON-ILL MOM PB SIL-BZL FLSH RED
EM22 Series Information
- 22.5mm Mounting Size
- Flush or Extended Types
- Finger‑Safe Screw Terminals
- NEMA 1,2,3,3R,4,4X,12,13; IP65
- UL; CSA; CE Approvals
- Easy to Assemble
- Heavy‑Duty Metal Design
