Series

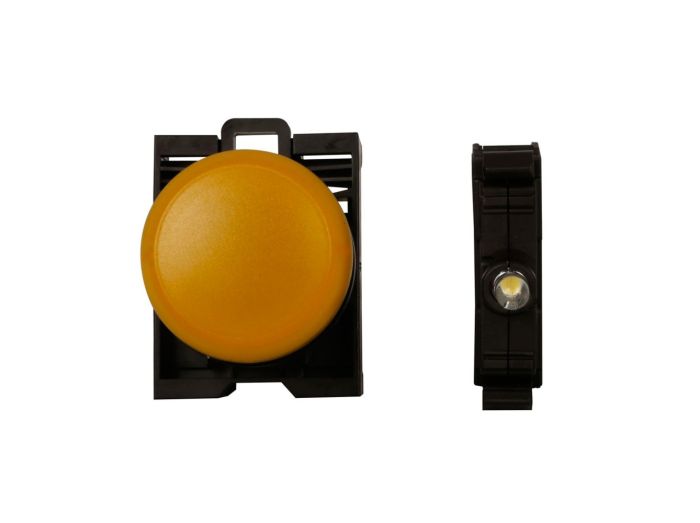

M22-L-Y-230W Eaton Pilot Lights, M22 Series
MFG #:
M22-L-Y-230W
Eaton M22 modular pushbutton, Complete Indicating Light, Flush, IP67, IP69K, NEMA 4X, 13, Illuminated, Yellow, White, 100, 000 Hours of operation, 85-264 Vac/dc
Specifications
| Country of Origin | Germany |
|---|---|
| Manufacturer Part Number | M22-L-Y-230W |
| Manufacturer | Eaton |
| Product Series | M22 |
| Family Series | Eaton Pilot Lights, M22 Series |
| Push-to-Test | No |
| Mounting | 22 mm |
| Lamp Type | LED |
| Lens/Button Shape | Flat Round |
| Lens Color | Yellow |
| Bezel | Black Plastic |
| Nominal Lamp Voltage | 120 VAC, 240 VAC |
| Protection Rating | IP67, IP69K |
| Terminal Type | Screw |
| NEMA Rating | NEMA 4X, NEMA 13 |
| H x W x D | 1.00 " x 2.00 " x 2.00 " |
| Gross Weight | 0.1 lbs |
| Net Weight | 0.1 lbs |
Description
Pilot Lights, M22 Series
Item #
M22-L-Y-230W
IND LGHT YEL 85-264VAC
M22 Series Information
- Customizable Laser Engraving on All Lenses
- LED Offering Only for Improved Brightness Quality and 100,000 Hours of Operation
- Lenses Designed Specifically for LED Illumination
- Capable of Communicating via ASi Protocol with ASi Adapter Modules
- IP67, IP69K and NEMA 4X and 13 Protections
