Specifications
| Manufacturer Part Number | M22-PV-K03 |
|---|---|
| Manufacturer | Eaton |
| Family Series | Eaton Switches |
| Illuminated | No |
| Operation | Maintained |
| Mounting | 22 mm |
| Operator Size (mm) | 38 mm |
| Contacts | 3NC |
| Bezel | Plastic Round |
| Lens/Button Shape | Mushroom |
| Operator Color | Red |
| Terminal Type | Screw |
| Protection Rating | IP66 |
| NEMA Rating | NEMA 4X, NEMA 13 |
| Approvals | CSA, UL |
| Net Weight | 0 lbs |
| Gross Weight | 0.6 lbs |
Description
Switches, Series
Item #
M22-PV-K03

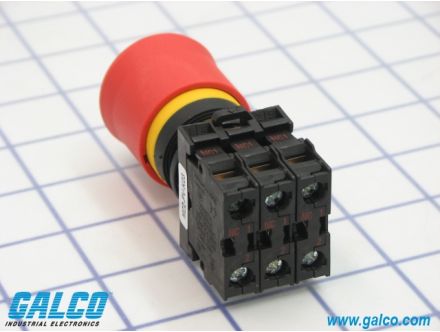

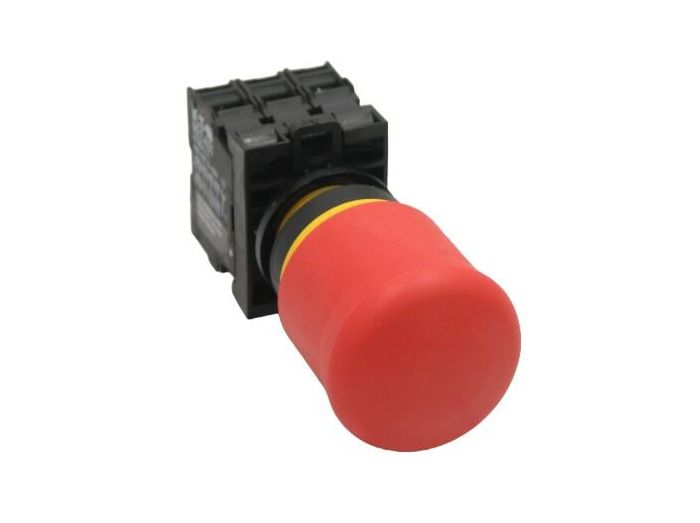

Push-Pull Pushbutton, Red, 35mm
Series Information
