M22S-DRL-R
Eaton Switches, M22 Series

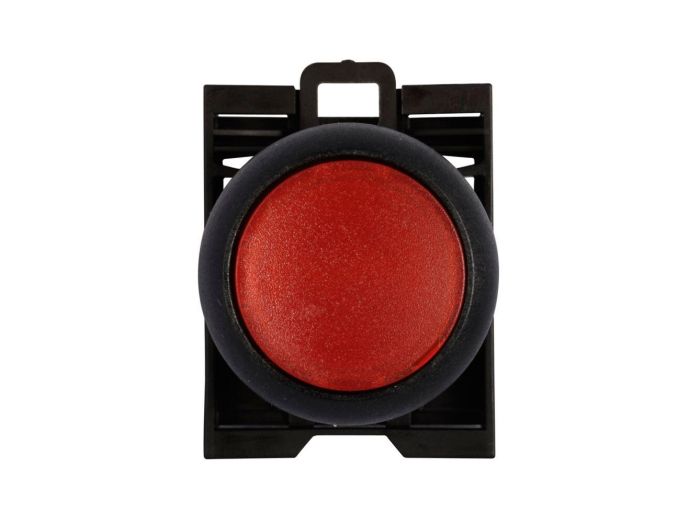

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
M22S-DRL-R Eaton Switches, M22 Series
ILL MTN PB BLK-BZL FLSH RED
MFG Item Number
M22S-DRL-R
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Switches, M22 Series
Item #
M22S-DRL-R
ILL MTN PB BLK-BZL FLSH RED
M22 Series Information
This attractive, functional line of pushbuttons features a space‑saving construction that enables fast assembly. The complete illuminated M22 line offers LED light units to ensure high‑quality brightness and up to 100,000 hours of illumination. Because of the rugged design of these pushbuttons, most operators and contact blocks exceed five million mechanical operations.
Specifications
| Country of Origin | Germany |
|---|---|
| Manufacturer Part Number | M22S-DRL-R |
| Manufacturer | Eaton |
| Product Series | M22 |
| Family Series | Eaton Switches, M22 Series |
| Description | Eaton M22 modular pushbutton, 22.5 mm, Flush, Maintained, Illuminated, Bezel: Black, Button: Red, IP67, IP69K, NEMA 4x, 13, 1,000,000 mechanical operations |
| Illuminated | Yes |
| Operation | Maintained |
| Mounting | 22 mm |
| Bezel | Plastic Round |
| Lens/Button Shape | Round Flush |
| Operator Color | Red |
| Protection Rating | IP67, IP69K |
| NEMA Rating | NEMA 13, NEMA 4X |
| H x W x D | 1.50 " x 5.00 " x 7.00 " |
| Net Weight | 0 lbs |
| Gross Weight | 0.05 lbs |
