Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series
M22S-WRK Eaton Switches, M22 Series
MFG #:
M22S-WRK

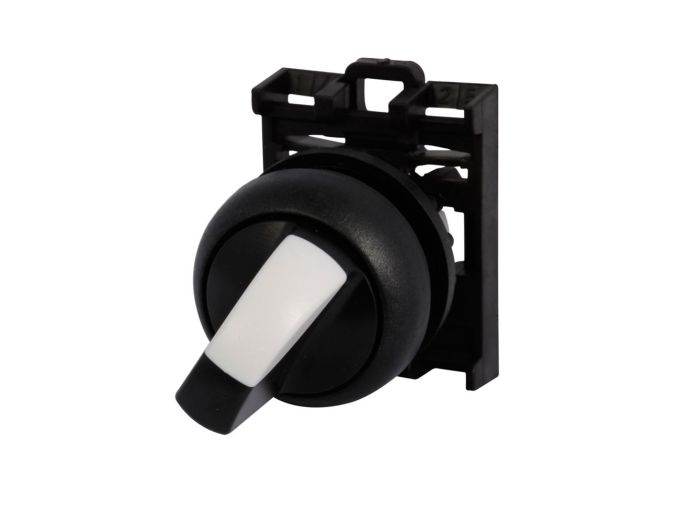

Eaton M22 modular pushbutton, M22 Modular Selector Switch Operator, 22.5 mm, Knob, Maintained, Non-illuminated, Bezel: Black, Button: Black, IP66, NEMA 4X, 13, Two-position, 100,000 Operations
Specifications
| Country of Origin | Germany |
|---|---|
| Manufacturer Part Number | M22S-WRK |
| Manufacturer | Eaton |
| Product Series | M22 |
| Family Series | Eaton Switches, M22 Series |
| Illuminated | No |
| Number of Positions | 2 |
| Mounting | 22 mm |
| Selector Function | Maintained |
| Operator Type | Knob |
| Operator Color | Black |
| Bezel | Plastic Round |
| NEMA Rating | NEMA 4X, NEMA 13 |
| Protection Rating | IP66 |
| H x W x D | 1.00 " x 2.00 " x 2.00 " |
| Net Weight | 0.045 lbs |
| Gross Weight | 0.05 lbs |
Description
Switches, M22 Series
Item #
M22S-WRK
NON-ILL 2POS MTN SEL SW THB-GP BLK-BZL
M22 Series Information
- Field Convertibility of Maintained/Momentary and Key Removal Positions
- More Than 100,000 Mechanical Operations
- Capable of Communicating via ASi Protocol with ASi Adapter Modules
- LED Offering Only for Improved Brightness Quality and 100,000 Hours of Operation
- IP67, IP69K and NEMA 4X and 13 Protections
Eaton's M22 selector switch line offers an almost endless variety of options in maintained/momentary, key removal and illuminated devices. The coding adapters used for maintained/ momentary and key removal positions make the M22 stand out from competitive devices. By simply adding or removing a coding adapter from inside the operator, the end‑user can change the function of the button. Operator options include standard knob, rotary head, illuminated and keyed versions.
