Specifications
| Manufacturer Part Number | M3SS1-60B20 |
|---|---|
| Manufacturer | ABB |
| Product Series | MODULAR |
| Family Series | ABB Switches, MODULAR Series |
| Illuminated | No |
| Number of Positions | 3 |
| Mounting | 22 mm |
| Selector Function | Maintained |
| Operator Type | Knob |
| Contacts | 2NO |
| Max Voltage | 600 VAC, 600 VDC |
| Current Rating | 10 A |
| Operator Color | Black |
| Bezel | Plastic Round |
| Terminal Type | Fingersafe Screw |
| NEMA Rating | NEMA 4X, NEMA 13 |
| Approvals | CE, CSA, UL |
| Protection Rating | IP66 |
| H x W x D | 1.00 " x 1.00 " x 1.00 " |
| Net Weight | 0.13 lbs |
| Gross Weight | 0.18 lbs |
Description
Switches, MODULAR Series
Item #

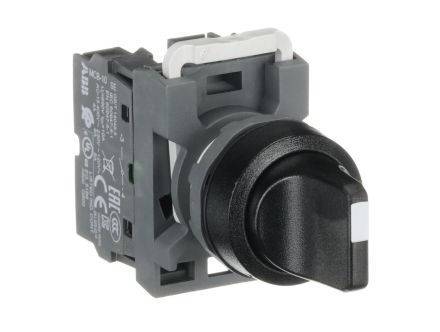

M3SS1-60B20
Selector Switch, 3-Pos Maint, 2NO,
MODULAR Series Information
- 22mm or 30mm Mounting Size
- Maintained or Spring Return
- Finger‑Safe Screw Terminals
- NEMA 13,4X; IP66
- UL; CSA; IEC Approvals
- Can Be Used in Tough Environments
- Up to Six Contact Blocks on One Actuator
- Easy to Mount and Wire
