ML70.100
Puls Power Supplies, Mini Line Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

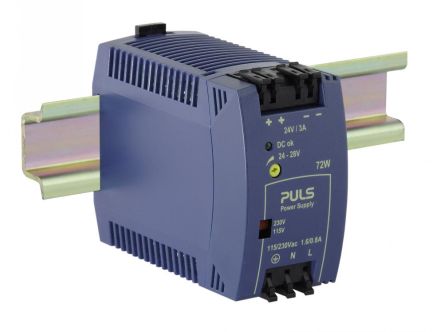

ML70.100 Puls Power Supplies, Mini Line Series
POWER SUPPLY, 24VDC, 3A, 1PH, 70W
MFG Item Number
ML70.100
Series
More specs
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Power Supplies, Mini Line Series
Item #
ML70.100
POWER SUPPLY, 24VDC, 3A, 1PH, 70W
Mini Line Series Information
- Single Output
- 5~56 VDC Outputs Available
- Up to 7.5 Amp Output Available
- 85~550 VAC Inputs Available
- CE, UL and C‑UL Approvals
- DIN Rail Mount
- Wide DC Input Voltage
- Rugged Plastic Housing
Specifications
| Country of Origin | China |
|---|---|
| Manufacturer Part Number | ML70.100 |
| Manufacturer | Puls |
| Product Series | Mini Line |
| Family Series | Puls Power Supplies, Mini Line Series |
| Description | POWER SUPPLY, 24VDC, 3A, 1PH, 70W 24/28VDC@3/2.6A, DIN MOUNT 1.77in.Wx2.95in.Hx3.58in.D |
| Power | 70 W |
| Nominal Input Voltage | 120 VAC, 240 VAC |
| AC Voltage | 100-120 VAC, 220-240 VAC |
| Input Frequency | 47-63 Hz |
| Phase | 1 |
| Nominal Output Voltage | 24 VDC |
| Output VDC | 24-28 VDC |
| Output Current | 3 A |
| Number of Outputs | 1 |
| Mounting | DIN Rail |
| Enclosed | Yes |
| Encapsulated | No |
| Output Voltage Adj. | Yes |
| Overvoltage Protection | Yes |
| Overload Protection | Yes |
| Short Circuit Protection | Yes |
| Power Factor Correction | No |
| Parallel Operation | Yes |
| Remote Sensing | No |
| Remote On/Off Control | No |
| Operating Temperature | 14-158 °F |
| Approvals | CE, cULus, cURus, UL508, UL60950 |
| Net Weight | 0.575 lbs |
| Gross Weight | 0.7937 lbs |
