ML90.200
Puls Power Supplies, Mini Line Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

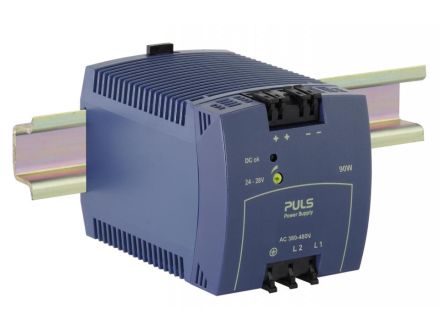

ML90.200 Puls Power Supplies, Mini Line Series
Power Supply, 24VDC, 3.75A, 2Ph, 90W
MFG Item Number
ML90.200
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Accessories
Description
Power Supplies, Mini Line Series
Item #
ML90.200
Power Supply, 24VDC, 3.75A, 2Ph, 90W
Mini Line Series Information
- Single Output
- 5~56 VDC Outputs Available
- Up to 7.5 Amp Output Available
- 85~550 VAC Inputs Available
- CE, UL and C‑UL Approvals
- DIN Rail Mount
- Wide DC Input Voltage
- Rugged Plastic Housing
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Manufacturer Part Number | ML90.200 |
| Manufacturer | Puls |
| Product Series | Mini Line |
| Family Series | Puls Power Supplies, Mini Line Series |
| Description | Power Supply, 24VDC, 3.75A, 2Ph, 90W 380-480V 2-Ph Input, Spring Terminal 75.2mmWx75mmHx103mmD |
| Power | 90 W |
| Nominal Input Voltage | 380 VAC, 480 VAC |
| AC Voltage | 380-480 VAC |
| Input Frequency | 47-63 Hz |
| Phase | 2 |
| Nominal Output Voltage | 24 VDC |
| Output VDC | 24-28 VDC |
| Output Current | 3.75 A |
| Number of Outputs | 1 |
| Mounting | DIN Rail |
| Enclosed | Yes |
| Encapsulated | No |
| Output Voltage Adj. | Yes |
| Overvoltage Protection | Yes |
| Overload Protection | Yes |
| Short Circuit Protection | Yes |
| Power Factor Correction | No |
| Parallel Operation | No |
| Remote Sensing | No |
| Remote On/Off Control | No |
| Operating Temperature | 14-158 °F |
| Approvals | CE, cULus, cURus, UL508, UL60950 |
| H x W x D | 3.62 " x 5.51 " x 5.91 " |
| Net Weight | 0.5069 lbs |
| Gross Weight | 0.97 lbs |
