Specifications
| Manufacturer Part Number | MP1-60R11 |
|---|---|
| Manufacturer | ABB |
| Product Series | MODULAR |
| Family Series | ABB Switches, MODULAR Series |
| Illuminated | No |
| Operation | Momentary |
| Mounting | 22 mm |
| Contacts | 1NO, 1NC |
| Max Voltage | 600 VAC, 600 VDC |
| Current Rating | 10 A |
| Bezel | Metal Round |
| Lens/Button Shape | Round Flush |
| Operator Color | Red |
| Terminal Type | Fingersafe Screw |
| Protection Rating | IP66 |
| NEMA Rating | NEMA 4X, NEMA 13 |
| Approvals | CSA, IEC, UL |
| H x W x D | 1.00 " x 1.00 " x 1.00 " |
| Net Weight | 0.1389 lbs |
| Gross Weight | 0.11 lbs |
Description
Switches, MODULAR Series
Item #
MP1-60R11

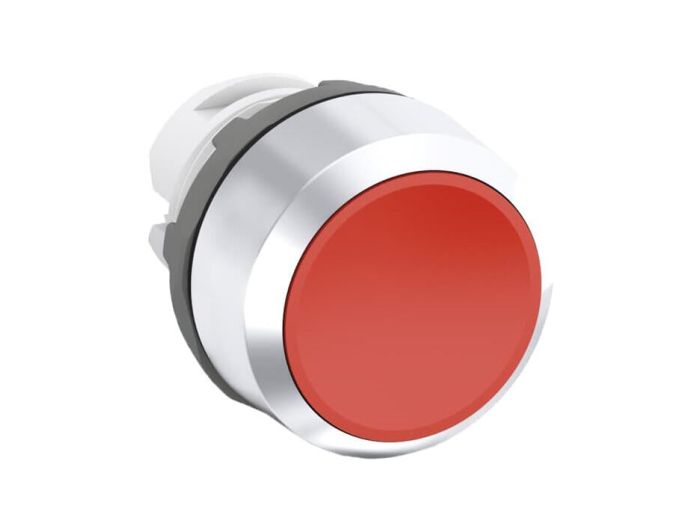

Pushbutton, Mom, Red, Flush, 1/1,
MODULAR Series Information
- 22mm or 30mm Mounting Size
- Incandescent or LED Types
- Finger‑Safe Screw Terminals
- NEMA 13,4X; IP66
- UL; CSA; IEC Approvals
- Can Be Used in Tough Environments
- Easy to Mount and Wire
