Series

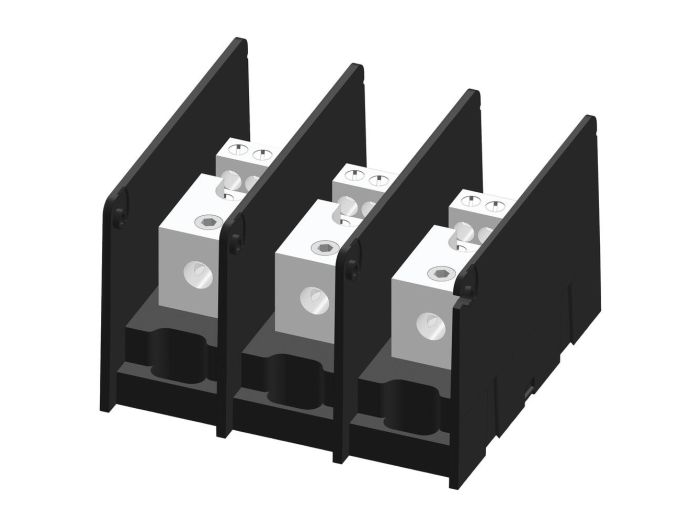

MPDB67003 Mersen Power Distribution Blocks, MPDB Series
MFG #:
MPDB67003
Open-Style PDB UL 1953 1000V 250A Tin-plated Aluminum - 310A 3-Pole 1 - 1 openings; 350-6 --- 350-6 Box to Box
Specifications
| Manufacturer Part Number | MPDB67003 |
|---|---|
| Manufacturer | Mersen |
| Product Series | MPDB |
| Family Series | Mersen Power Distribution Blocks, MPDB Series |
| Number of Poles | 3 |
| AC Voltage | 600 VAC |
| Current Rating | 310 A |
| Number of Inputs per Pole | 1 |
| Number of Outputs per Pole | 1 |
| Electrical Connection | Box Lug/Box Lug |
| Mounting | Panel Mount |
| Line Side Wire Range | 350 kcmil-6 AWG |
| Output Wire Range | 350 kcmil-6 AWG |
| Cover Included | No |
| Composition | Glass-Fill Polycarbonate |
| Color | Black |
| Approvals | CSA, UL |
| H x W x D | 3.25 " x 3.08 " x 5.28 " |
| Net Weight | 1.395 lbs |
| Gross Weight | 1.6 lbs |
Description
Power Distribution Blocks, MPDB Series
Item #
MPDB67003
MPDB Series UL 1953 1000V 250A - 310A
MPDB Series Information
- Adder Poles
- Wire Connectors
- Insulators
- Spacings
- Safety Covers
Mersen power distribution blocks provide a safe and easy method of splicing cables, splitting primary power into secondary circuits and fulfilling requirements for fixed junction tap‑off points. All blocks are UL and CSA approved while meeting spacing requirements for feeder and branch circuits in conjunction with UL508A and the National Electrical Code. PDB options include single or dual conductor primary inputs and up to 30 secondary outputs. Specialty blocks are available allowing for up to 7 primary inputs.
The MPDB series is offered in three size categories: miniature (MPDB62 and MPDB63 series), intermediate (MPDB66 and MPDB67 series), and large (MPDB68 and MPDB69 series), in both aluminum and copper.
