Series

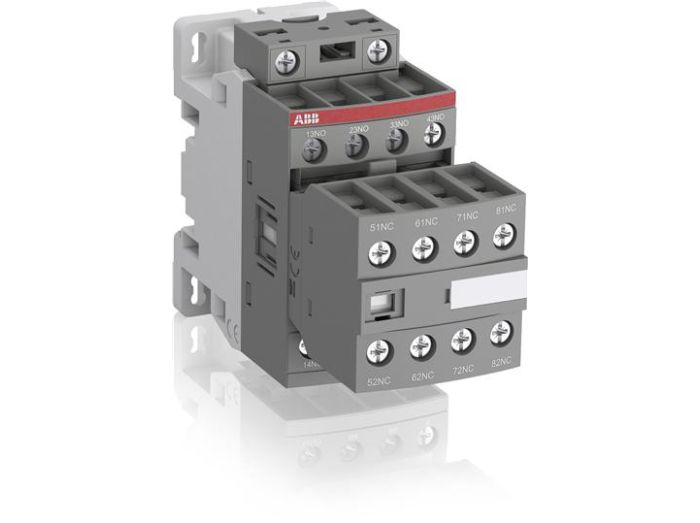

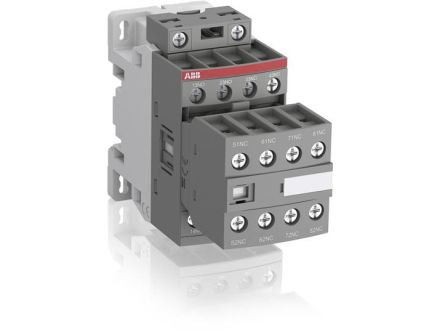

NF62E-11 ABB Control Relays, NF Series
MFG #:
NF62E-11
NF contactor relays are used for switching auxiliary and control circuits. NF contactor relays include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...500 V 50/60
Specifications
| Manufacturer Part Number | NF62E-11 |
|---|---|
| Manufacturer | ABB |
| Product Series | NF |
| Family Series | ABB Control Relays, NF Series |
| Nominal Voltage | 24 VAC, 48 VAC, 24 VDC, 48 VDC |
| Voltage | 24-60 VAC, 20-60 VDC |
| Number of Poles | 8 |
| Contact Configuration | 6NO, 2NC |
| Thermal Current Rating | 16 A |
| Termination | Screw |
| Mounting | DIN Rail, Screw |
| Approvals | CCC, CE, GOST, UL |
| H x W x D | 1.85 " x 3.43 " x 4.45 " |
| Net Weight | 0.7056 lbs |
| Gross Weight | 0.76 lbs |
Description
Control Relays, NF Series
Item #
NF62E-11
RELAY, 6NO, 2NC, 24-60V50/60HZ, 20-6
NF Series Information
- NF contactor relays are used for switching auxiliary and control circuits.
- NF contactor relays include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max.
- Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC.
- NF contactor relays can manage large control voltage variations.
- One coil can be used for different control voltages used worldwide without any coil change.
- NF contactor relays have built‑in surge protection and do not require additional surge suppressors.
- Control Circuit: AC or DC operated
- Accessories: a wide range of Accessories is available.
