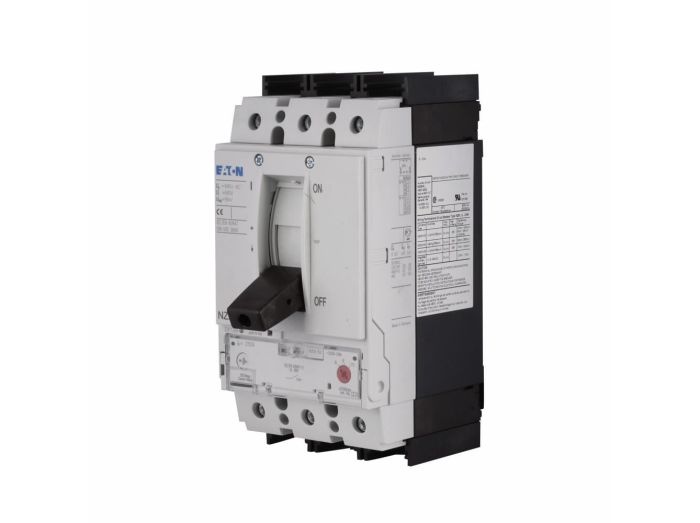

NZMB2-A80-BT-NA
Eaton Circuit Breakers, NZM2 Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
NZMB2-A80-BT-NA Eaton Circuit Breakers, NZM2 Series
UL/CSA/IEC TM CB 80A 3P ADJ THERM SET BT
MFG Item Number
EATON-107779
Item Number
NZMB2-A80-BT-NA
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Circuit Breakers, NZM2 Series
Item #
NZMB2-A80-BT-NA
UL/CSA/IEC TM CB 80A 3P ADJ THERM SET BT
NZM2 Series Information
- Panel Mount
- 5 ~ 250 Amps
- 3/4 Poles
- IEC 60947‑2
- 440/690 VAC 750 VDC
Specifications
| Country of Origin | Romania |
|---|---|
| Manufacturer Part Number | EATON-107779 |
| Manufacturer | Eaton |
| Product Series | NZM2 |
| Family Series | Eaton Circuit Breakers, NZM2 Series |
| Description | Eaton Series NZM complete molded case circuit breaker, NZM2-frame, NZMB2, Fixed thermal, adj. magnetic trip, 480-800A, Three-pole, 80A, 440 Vac, 25 kAIC, Box, Distribution circuit protect., 63-80A, Front frame clamp, 63-80A |
| Poles | 3 |
| Current Rating | 80 A |
| Max Voltage | 440 VAC |
| Trip Unit | Fixed Thermal / Fixed Magnetic |
| Mounting | Panel |
| Terminal Type | Box Terminal |
| Auxiliary Switch | Optional |
| Shunt Trip | Optional |
| Undervoltage Release | Optional |
| UL Standard | 489 |
| Approvals | CCC, CE, CSA, UL |
| H x W x D | 6.50 " x 4.50 " x 8.50 " |
| Gross Weight | 4.5 lbs |
| Net Weight | 4.5 lbs |
