NZMC2-A200
Eaton Circuit Breakers, NZM2 Series

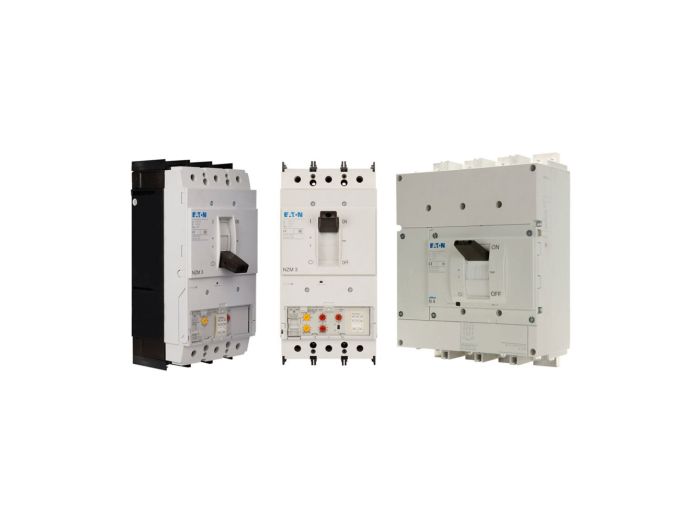

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
NZMC2-A200 Eaton Circuit Breakers, NZM2 Series
TM MCCB 200A 3P ADJ THERM SET SCR
MFG Item Number
EATON-271422
Item Number
NZMC2-A200
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Circuit Breakers, NZM2 Series
Item #
NZMC2-A200
TM MCCB 200A 3P ADJ THERM SET SCR
NZM2 Series Information
- Simultaneous reduction in head dissipation allows for use in panels
- Innovative switching technology with a double‑break contact system
- Switching capacities up to 150 kA and voltages up to 690 V
- Double‑break system speeds up the switching process
- Compact form factor without minimizing capabilities
Eaton's NZM case circuit‑breakers have a uniquely uniform approach to mounting, operation & switching, saving time & money. Available in four frame sizes, with toggle or rotary handle options, the NZM are suitable for a wide variety of applications. Contacts from the RMQ‑Titan range of control circuit devices simply clip in from the front of the circuit‑breakers to provide remote status indication.
Specifications
| Manufacturer Part Number | EATON-271422 |
|---|---|
| Manufacturer | Eaton |
| Product Series | NZM2 |
| Family Series | Eaton Circuit Breakers, NZM2 Series |
| Description | TM MCCB 200A 3P ADJ THERM SET SCR TERM |
| Poles | 3 |
| Current Rating | 200 A |
| Max Voltage | 690 VAC |
| Trip Unit | Fixed Thermal / Fixed Magnetic |
| Mounting | Panel |
| Terminal Type | Screw |
| Auxiliary Switch | Optional |
| Shunt Trip | Optional |
| Undervoltage Release | Optional |
| UL Standard | 489 |
| Approvals | CCC, CE, CSA, UL |
| H x W x D | 5.90 " x 4.10 " x 7.20 " |
| Gross Weight | 4.1 lbs |
| Net Weight | 4.125 lbs |
