NZMH2-M100
Eaton Circuit Breakers, NZM2 Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

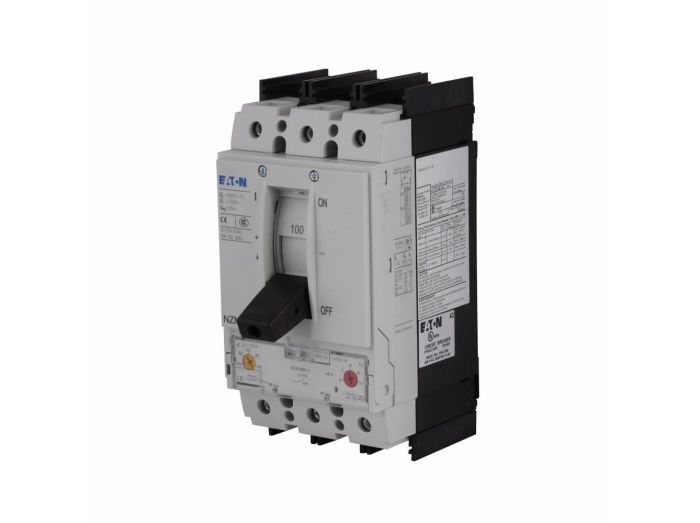

NZMH2-M100 Eaton Circuit Breakers, NZM2 Series
IEC ONLY TM MOT/ PROT MCCB 100A 3P ADJ
MFG Item Number
EATON-281306
Item Number
NZMH2-M100
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Circuit Breakers, NZM2 Series
Item #
NZMH2-M100
IEC ONLY TM MOT/ PROT MCCB 100A 3P ADJ
NZM2 Series Information
- Panel Mount
- 5 ~ 250 Amps
- 3/4 Poles
- IEC 60947‑2
- 440/690 VAC 750 VDC
Specifications
| Country of Origin | Germany |
|---|---|
| Manufacturer Part Number | EATON-281306 |
| Manufacturer | Eaton |
| Product Series | NZM2 |
| Family Series | Eaton Circuit Breakers, NZM2 Series |
| Description | Eaton Series NZM motor protection circuit breaker, NZM2-frame, NZMH2, Thermal-magnetic trip, Three-pole, 100A, 690 Vac, 750 Vdc, 85-150 kAIC, Motor protect., Thermomagnetic switch off, 100-125A, 1000-1750A delayed, Screw |
| Poles | 3 |
| Current Rating | 100 A |
| Max Voltage | 690 VAC, 750 VDC |
| Trip Unit | Fixed Thermal / Fixed Magnetic |
| Mounting | Panel |
| Terminal Type | Screw |
| Auxiliary Switch | Optional |
| Shunt Trip | Optional |
| Undervoltage Release | Optional |
| UL Standard | 489 |
| Approvals | CCC, CE, CSA, UL |
| H x W x D | 5.90 " x 4.10 " x 7.20 " |
| Gross Weight | 4.1 lbs |
| Net Weight | 4.1 lbs |
