NZMN1-S63-CNA
Eaton Circuit Breakers, NZM1 Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

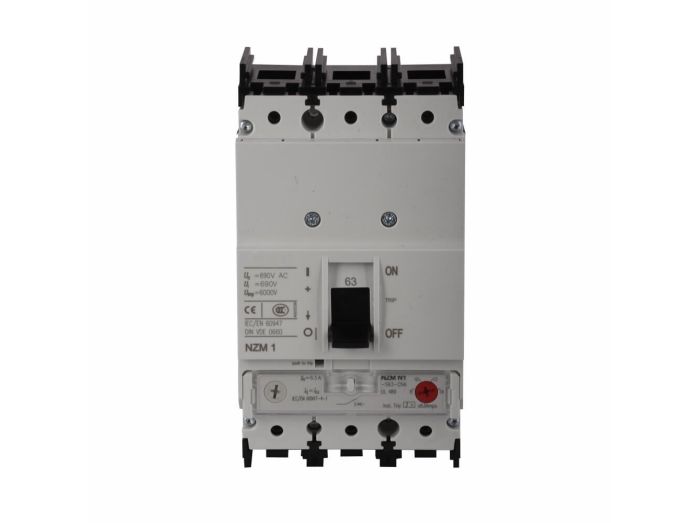

NZMN1-S63-CNA Eaton Circuit Breakers, NZM1 Series
UR MAG ONLY MCCB 63A 3P SCRTERM USE W/C
MFG Item Number
EATON-281278
Item Number
NZMN1-S63-CNA
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Circuit Breakers, NZM1 Series
Item #
NZMN1-S63-CNA
UR MAG ONLY MCCB 63A 3P SCRTERM USE W/C
NZM1 Series Information
- Panel Mount
- 3 ~ 125 Amps
- 3/4 Poles
- IEC 60947‑2
- 440/690 VAC 500 VDC
Specifications
| Country of Origin | Germany |
|---|---|
| Manufacturer Part Number | EATON-281278 |
| Manufacturer | Eaton |
| Product Series | NZM1 |
| Family Series | Eaton Circuit Breakers, NZM1 Series |
| Description | Eaton Series NZM motor protection circuit breaker, NZM1-frame, NZMN1, Magnetic only trip, 1000-1750A, Three-pole, 63A, 690 Vac, 500 Vdc, 50 kAIC, Motor protection w/o overload release, 100-125A, Screw, 37 kW at 230 Vac, 55 kW at 400 Vac |
| Poles | 3 |
| Current Rating | 63 A |
| Max Voltage | 500 VDC, 690 VAC |
| Trip Unit | Fixed Thermal / Fixed Magnetic |
| Mounting | Panel |
| Terminal Type | Box Terminal |
| Auxiliary Switch | Optional |
| Shunt Trip | Optional |
| Undervoltage Release | Optional |
| UL Standard | 489 |
| Approvals | CCC, CE, CSA, UL |
| H x W x D | 3.75 " x 3.75 " x 6.75 " |
| Gross Weight | 3.75 lbs |
| Net Weight | 3.75 lbs |
