NZMN2-AF200-NA
Eaton Circuit Breakers, NZM2 Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

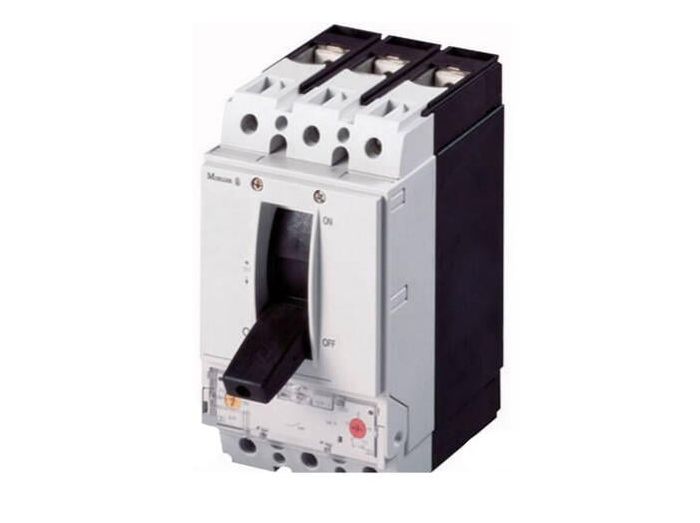

NZMN2-AF200-NA Eaton Circuit Breakers, NZM2 Series
UL/CSA/IEC TM MCCB 200A 3P FIXED
MFG Item Number
EATON-269187
Item Number
NZMN2-AF200-NA
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Circuit Breakers, NZM2 Series
Item #
NZMN2-AF200-NA
UL/CSA/IEC TM MCCB 200A 3P FIXED
NZM2 Series Information
- Panel Mount
- 5 ~ 250 Amps
- 3/4 Poles
- IEC 60947‑2
- 440/690 VAC 750 VDC
Specifications
| Manufacturer Part Number | EATON-269187 |
|---|---|
| Manufacturer | Eaton |
| Product Series | NZM2 |
| Family Series | Eaton Circuit Breakers, NZM2 Series |
| Description | UL/CSA/IEC TM MCCB 200A 3P FIXED THERM SET SCREW |
| Poles | 3 |
| Current Rating | 200 A |
| Max Voltage | 690 VAC, 750 VDC |
| Trip Unit | Fixed Thermal / Fixed Magnetic |
| Mounting | Panel |
| Terminal Type | Screw |
| Auxiliary Switch | Optional |
| Shunt Trip | Optional |
| Undervoltage Release | Optional |
| UL Standard | 489 |
| Approvals | CCC, CE, CSA, UL |
| H x W x D | 6.00 " x 4.50 " x 8.50 " |
| Gross Weight | 4.5 lbs |
| Net Weight | 4.5 lbs |
